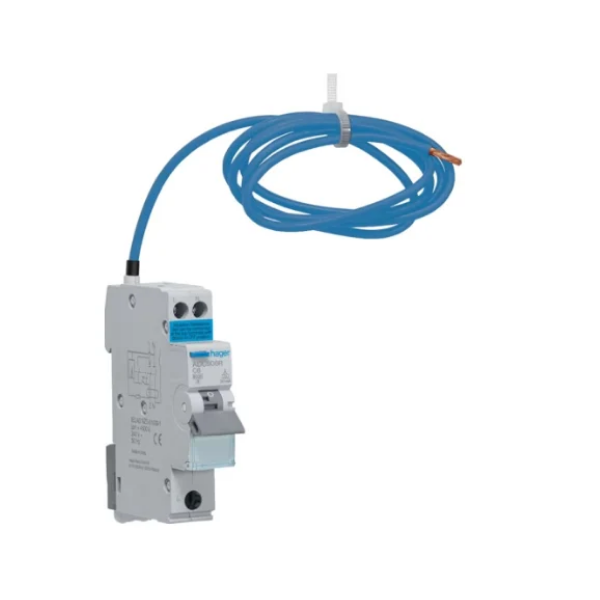

Hager ADB916R Bi-Directional 1 Module 1P+N B Curve Type A RCBO 16A 6kA 30mA
ADB916R
Hager Bi-Directional ADB RCBO - 16A Type A B Curve with 30mA Protection, 1P+N
The Hager ADB RCBO provides reliable combined overcurrent and residual current protection in a compact 1-module device. Designed for modern installations, its bi-directional capability ensures flexibility, making it ideal for a wide range of domestic and commercial applications.
- Bi-Directional Operation: Suitable for line supply from either direction, simplifying installation and reducing wiring constraints.
- Combined Protection: Provides both overcurrent and 30mA residual current protection for enhanced circuit safety.
- B Curve Tripping: Ideal for standard circuits with moderate inrush currents such as lighting and socket circuits.
- Compact Design: 1-module width allows efficient use of space within consumer units.
- Type A RCD: Detects AC and pulsating DC fault currents, suitable for modern electrical loads.
Technical Specification
- Current Rating: 16A
- Poles: 1P+N
- Breaking Capacity: 6kA
- Sensitivity: 30mA
- Tripping Curve: Type B
✅ Ensure safe and efficient circuit protection with the Hager ADB RCBO, built for modern electrical installations.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Trip Type | B Curve Type A |
| Short Circuit Rating | 6kA |
| Cable Capacity | 16 mm2 |
| Sensitivity | 30 mA |
| Product | RCBO |
| Type | Singe Pole + N |
| Ingress Protection | IP20 |
| Voltage | 230 V |
| Pole Configuration | SP+N |
| Mounting | DIN Rail |
| Current Rating | 16A |
| Standards | BSEN61009 |
| Rcd Sensitivity | 30 mA |
| Number Of Poles | Single Pole (1P) |
| Number Of Modules | 1 |
| Curve Type | Type B |
