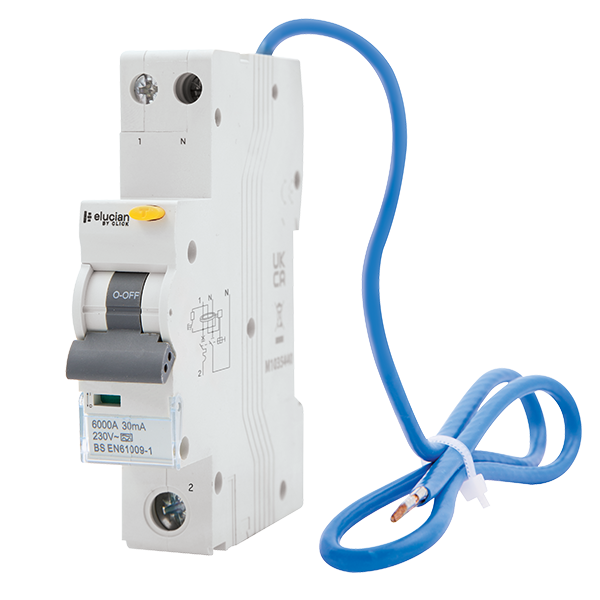

Scolmore CU1RCBOD6C Elucian 1 Pole + Switched Neutral Bi-Directional True 6kA C Curve 6A 30Ma RCBO (Type A)
CU1RCBOD6C
Scolmore Elucian 1 Pole + Switched Neutral Bi-Directional 6kA C Curve 6A 30mA RCBO (Type A) – Advanced Circuit and Residual Current Protection
The Scolmore Elucian RCBO provides combined overcurrent and residual current protection in a compact, bi-directional design. Featuring a C curve tripping characteristic, 30mA sensitivity, and Type A detection, it is ideal for modern residential and light commercial installations where flexible supply connections and high safety standards are required.
- Combined MCB & RCD Protection: Protects against overloads, short circuits, and earth leakage in a single device.
- Bi-Directional Design: Allows supply connection from the top or bottom for added installation flexibility.
- C Curve Tripping: Suitable for circuits with higher inrush currents such as appliances and control gear.
- 30mA Residual Current Sensitivity: Provides additional protection against electric shock.
- Type A Detection: Detects AC and pulsating DC earth fault currents in line with current wiring regulations.
Technical Specification
- Device Type: RCBO
- Poles: 1 Pole + Switched Neutral
- Rated Current: 6A
- Tripping Characteristic: C Curve
- Breaking Capacity: 6kA
✅Choose the Scolmore Elucian bi-directional 6A Type A RCBO for flexible installation and dependable, regulation-compliant protection.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Range | Scolmore Elucian |
| Trip Type | C Curve Type A |
| Short Circuit Rating | 6kA |
| Product | RCBO |
| Type | Singe Pole + N |
| Current Rating | 6A |
