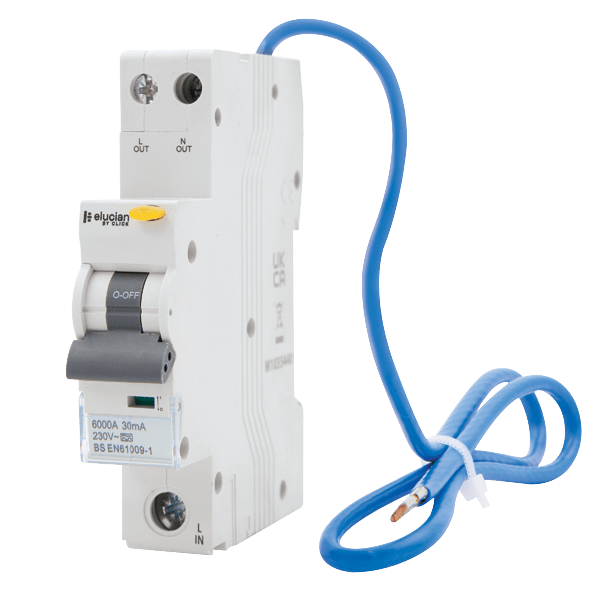

Scolmore CU1RCBO32B Elucian 1 Pole + Unswitched Neutral True 6kA B Curve 32A 30Ma RCBO (Type A)
CU1RCBO32B
Scolmore Elucian 1 Pole + Unswitched Neutral 6kA B Curve 32A 30mA RCBO (Type A) – Combined Circuit and Residual Current Protection
The Scolmore Elucian RCBO provides combined overcurrent and residual current protection in a single compact device. Featuring a B curve tripping characteristic, 30mA sensitivity, and Type A detection, it is ideal for standard load circuits in residential and light commercial installations where safety and compliance are essential.
- Combined MCB & RCD Protection: Protects against overloads, short circuits, and earth leakage in one device.
- B Curve Tripping: Suitable for lighting and general-purpose circuits with low inrush current.
- 30mA Residual Current Sensitivity: Provides additional protection against electric shock.
- Type A Detection: Detects AC and pulsating DC earth fault currents in line with current wiring regulations.
- 1 Pole + Unswitched Neutral: Ensures secure disconnection while maintaining neutral continuity.
Technical Specification
- Device Type: RCBO
- Poles: 1 Pole + Unswitched Neutral
- Rated Current: 32A
- Tripping Characteristic: B Curve
- Breaking Capacity: 6kA
✅Specify the Scolmore Elucian 32A B Curve Type A RCBO for reliable, space-saving, and regulation-compliant circuit protection.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Range | Scolmore Elucian |
| Trip Type | B Curve Type A |
| Short Circuit Rating | 6kA |
| Product | RCBO |
| Type | Singe Pole + N |
| Current Rating | 32A |
