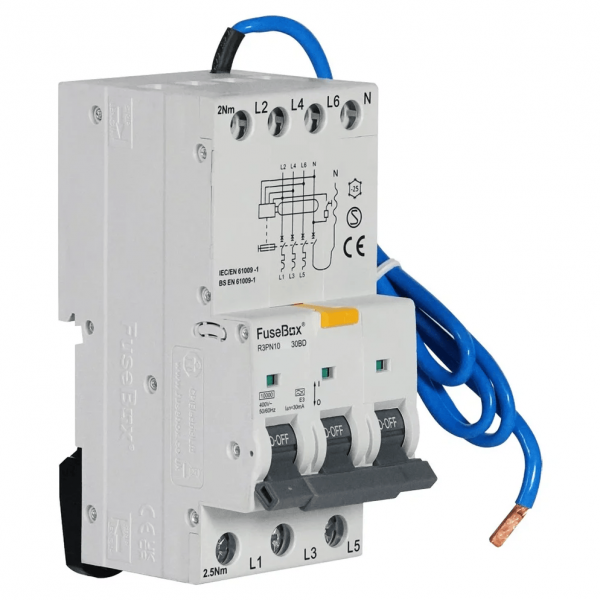

Fusebox R3PN10B0630BD Bi-Directional B Curve Type A RCBO 3P+N 6A 30mA 10kA
R3PN10B0630BD
FuseBox R3PN10B0630BD 3P+N 6A Type A Bi-Directional RCBO – Reliable Circuit Protection with 10kA Short Circuit Capacity
The FuseBox R3PN10B0630BD RCBO delivers robust and safe circuit protection for three-phase installations. Designed with Type A sensitivity and bi-directional functionality, it provides dependable performance across a wide range of applications, ensuring compliance and efficiency for professional installations.
- Comprehensive Protection: Combines residual current and overcurrent protection in one compact device.
- Bi-Directional Design: Allows line and load connections at either end for flexible installation.
- Type A Sensitivity: Detects AC and pulsating DC currents for enhanced safety across modern electrical systems.
- High Breaking Capacity: Rated at 10kA for reliable protection against short circuits.
- Professional Compliance: Independently tested and certified to BS EN 62606 / IEC 61009-1 standards.
Technical Specification
- Poles: 3P+N
- Rated Current: 6A
- Tripping Curve: B Curve
- Rated Short Circuit Capacity: 10kA
- Residual Operating Current: 30mA
✅ Ensure dependable, code-compliant protection with the FuseBox R3PN10B0630BD RCBO — the ideal choice for modern three-phase systems.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Range | FuseBox Bi-Directional |
| Trip Type | B Curve Type A |
| Short Circuit Rating | 10kA |
| Sensitivity | 30 mA |
| Rcd Type/class | A |
| Product | RCBO |
| Type | 3P+N |
| Mounting | DIN Rail |
| Current Rating | 6A |
