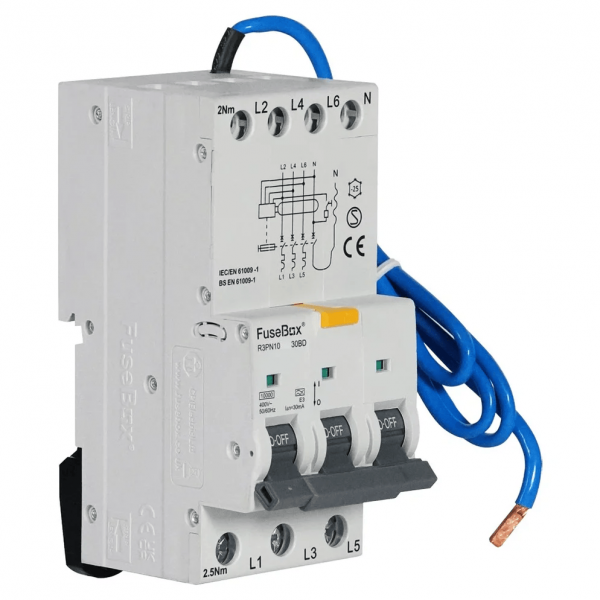

Fusebox R3PN10B1030BD Bi-Directional B Curve Type A RCBO 3P+N 10A 30mA 10kA
R3PN10B1030BD
FuseBox R3PN10B1030BD 3P+N 10A Type A Bi-Directional RCBO – Reliable Circuit Protection with 10kA Short Circuit Capacity
The FuseBox R3PN10B1030BD RCBO provides dependable and safe circuit protection for three-phase installations. Featuring Type A sensitivity and bi-directional functionality, it ensures optimal performance, flexibility, and compliance for professional electrical systems.
- Comprehensive Protection: Combines residual current and overcurrent protection in one compact unit.
- Bi-Directional Design: Allows line and load connections at either end for flexible installation.
- Type A Sensitivity: Detects AC and pulsating DC currents, ensuring superior protection for modern circuits.
- High Breaking Capacity: Rated at 10kA for reliable performance under fault conditions.
- Fully Compliant: Independently tested and certified to BS EN 62606 / IEC 61009-1 standards.
Technical Specification
- Poles: 3P+N
- Rated Current: 10A
- Tripping Curve: B Curve
- Rated Short Circuit Capacity: 10kA
- Residual Operating Current: 30mA
✅ Choose the FuseBox R3PN10B1030BD RCBO for robust, compliant, and professional three-phase circuit protection.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Range | FuseBox Bi-Directional |
| Trip Type | B Curve Type A |
| Short Circuit Rating | 10kA |
| Sensitivity | 30 mA |
| Rcd Type/class | A |
| Product | RCBO |
| Type | 3P+N |
| Mounting | DIN Rail |
| Current Rating | 10A |
