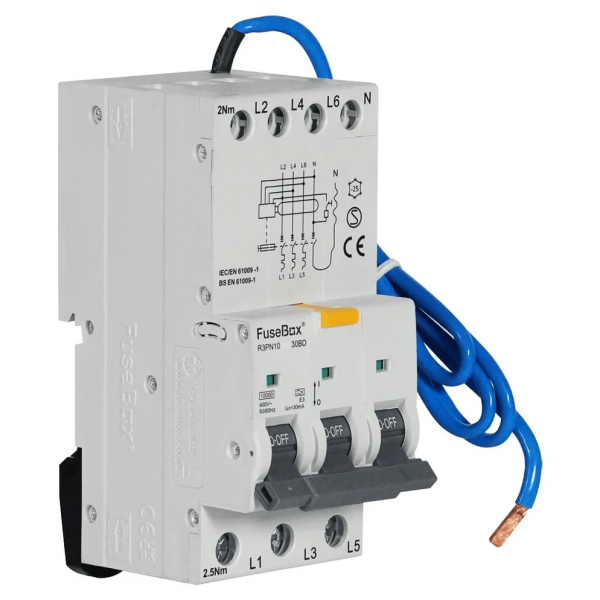

Fusebox R3PN10B1630BD Bi-Directional B Curve Type A RCBO 3P+N 16A 30mA 10kA
R3PN10B1630BD
FuseBox R3PN10B1630BD 3P+N 16A Type A Bi-Directional RCBO – Reliable Circuit Protection with 10kA Short Circuit Capacity
The FuseBox R3PN10B1630BD RCBO delivers dependable protection and performance for three-phase installations. Designed with Type A sensitivity and bi-directional operation, it ensures flexibility, safety, and compliance for modern electrical systems used by professionals.
- Comprehensive Protection: Combines residual current and overcurrent protection in a single compact device.
- Bi-Directional Functionality: Allows connection from either end for easy and flexible installation.
- Type A Sensitivity: Detects AC and pulsating DC residual currents, providing enhanced circuit safety.
- High Breaking Capacity: Rated at 10kA for reliable fault protection in demanding environments.
- Standards Compliance: Fully tested and certified to BS EN 62606 / IEC 61009-1 requirements.
Technical Specification
- Poles: 3P+N
- Rated Current: 16A
- Tripping Curve: B Curve
- Rated Short Circuit Capacity: 10kA
- Residual Operating Current: 30mA
✅ Rely on the FuseBox R3PN10B1630BD RCBO for safe, compliant, and high-performance three-phase circuit protection.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Range | FuseBox Bi-Directional |
| Trip Type | B Curve Type A |
| Short Circuit Rating | 10kA |
| Sensitivity | 30 mA |
| Rcd Type/class | A |
| Product | RCBO |
| Type | 3P+N |
| Mounting | DIN Rail |
| Current Rating | 16A |
