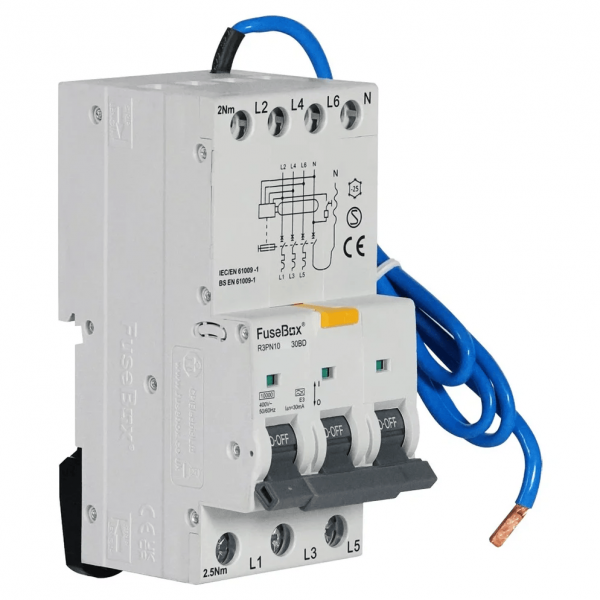

Fusebox R3PN10B2030BD Bi-Directional B Curve Type A RCBO 3P+N 20A 30mA 10kA

FuseBox R3PN10B2030BD 3P+N 20A Type A Bi-Directional RCBO – High-Performance Circuit Protection with 10kA Short Circuit Capacity

The FuseBox R3PN10B2030BD RCBO provides reliable, high-quality circuit protection for three-phase electrical systems. With Type A sensitivity and a bi-directional design, it offers flexibility, safety, and compliance for professional-grade installations.

• Combined Protection: Integrates residual current and overcurrent protection into one efficient device.
• Bi-Directional Operation: Enables line and load connections at either end for simplified installation.
• Type A Sensitivity: Detects AC and pulsating DC leakage currents for comprehensive circuit safety.
• High Breaking Capacity: Rated at 10kA, providing robust short circuit protection in demanding applications.
• Fully Certified: Independently tested and approved to BS EN 62606 / IEC 61009-1 standards.

Technical Specification

• Poles: 3P+N
• Rated Current: 20A
• Tripping Curve: B Curve
• Rated Short Circuit Capacity: 10kA
• Residual Operating Current: 30mA

✅ Depend on the FuseBox R3PN10B2030BD RCBO for reliable, compliant, and professional-grade three-phase circuit protection.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
