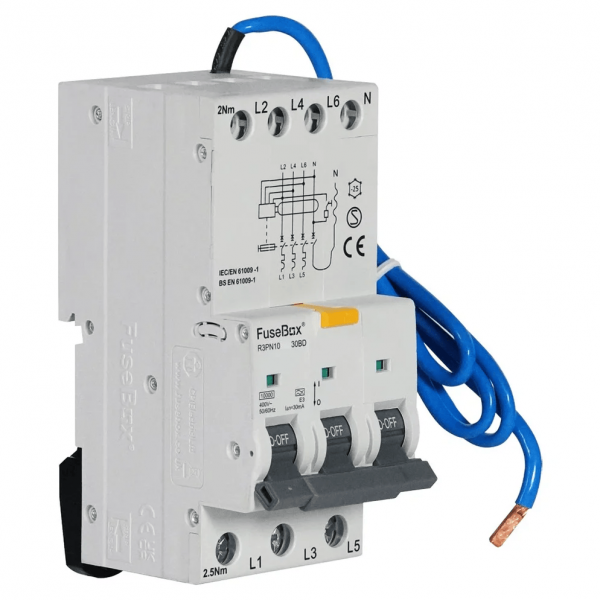

Fusebox R3PN10B2530BD Bi-Directional B Curve Type A RCBO 3P+N 25A 30mA 10kA

FuseBox R3PN10B2530BD 3P+N 25A Type A Bi-Directional RCBO – Professional Circuit Protection with 10kA Short Circuit Capacity

The FuseBox R3PN10B2530BD RCBO offers dependable protection and flexibility for three-phase electrical systems. Designed for professional installations, it combines Type A sensitivity with a bi-directional design to deliver safe, efficient, and compliant circuit protection.

• Integrated Protection: Combines residual current and overcurrent protection in one compact device.
• Bi-Directional Design: Supports line and load connections at either end for simplified installation.
• Type A Sensitivity: Detects both AC and pulsating DC leakage currents, ensuring enhanced circuit safety.
• High Fault Capacity: Rated at 10kA to protect against short circuits in demanding environments.
• Certified Performance: Fully tested and compliant with BS EN 62606 / IEC 61009-1 standards.

Technical Specification

• Poles: 3P+N
• Rated Current: 25A
• Tripping Curve: B Curve
• Rated Short Circuit Capacity: 10kA
• Residual Operating Current: 30mA

✅ Choose the FuseBox R3PN10B2530BD RCBO for robust, compliant, and professional three-phase circuit protection.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
