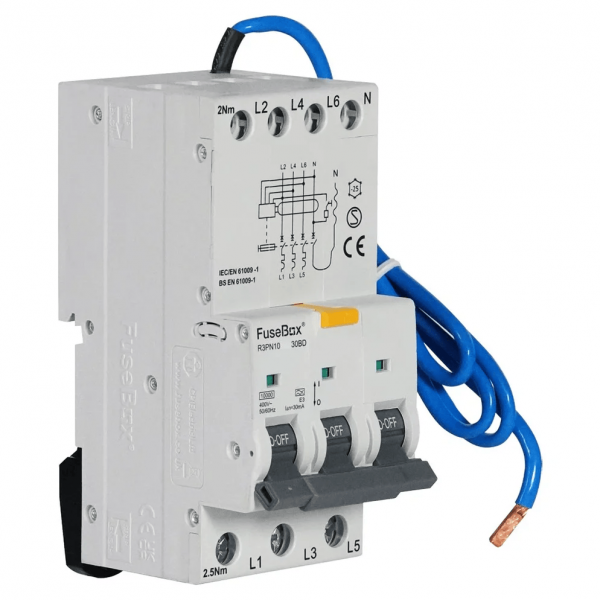

Fusebox R3PN10B3230BD Bi-Directional B Curve Type A RCBO 3P+N 32A 30mA 10kA

FuseBox R3PN10B3230BD 3P+N 32A Type A Bi-Directional RCBO – Durable Circuit Protection with 10kA Short Circuit Capacity

The FuseBox R3PN10B3230BD RCBO provides reliable and efficient circuit protection for three-phase installations. Combining Type A sensitivity with bi-directional flexibility, it ensures safe, compliant, and professional performance across a wide range of electrical applications.

• Dual Protection: Integrates residual current and overcurrent protection in a single, space-saving unit.
• Bi-Directional Functionality: Allows line and load connections at either end for versatile installation options.
• Type A Sensitivity: Detects both AC and pulsating DC residual currents for superior electrical safety.
• High Short Circuit Capacity: Rated at 10kA for dependable performance under fault conditions.
• Fully Compliant: Independently tested and certified to BS EN 62606 / IEC 61009-1 standards.

Technical Specification

• Poles: 3P+N
• Rated Current: 32A
• Tripping Curve: B Curve
• Rated Short Circuit Capacity: 10kA
• Residual Operating Current: 30mA

✅ Rely on the FuseBox R3PN10B3230BD RCBO for safe, compliant, and professional three-phase circuit protection every time.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
