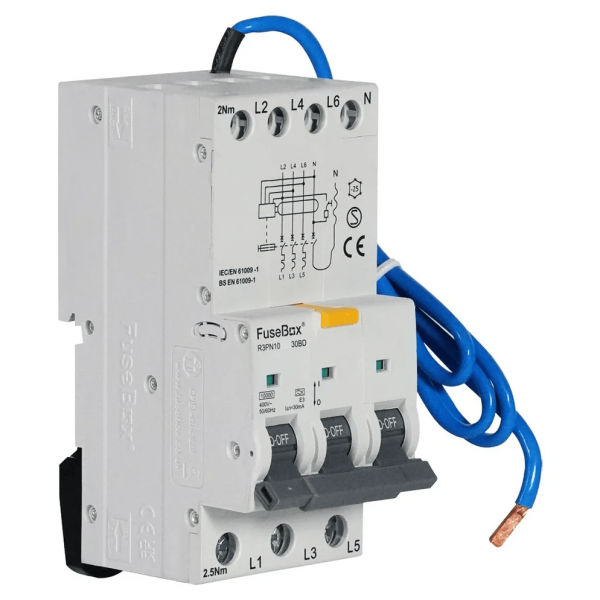

Fusebox R3PN10B5030BD Bi-Directional B Curve Type A RCBO 3P+N 50A 30mA 10kA

FuseBox R3PN10B5030BD 3P+N 50A Type A Bi-Directional RCBO – Premium Circuit Protection with 10kA Short Circuit Capacity

The FuseBox R3PN10B5030BD RCBO delivers strong, reliable protection for heavy-duty three-phase installations. Combining Type A sensitivity with a bi-directional design, it provides flexibility, safety, and full compliance for professional electrical systems.

• Advanced Protection: Integrates residual current and overcurrent protection into one robust, compact device.
• Bi-Directional Functionality: Allows connection from either end, offering flexibility during installation.
• Type A Sensitivity: Detects AC and pulsating DC leakage currents to ensure comprehensive circuit safety.
• High Breaking Capacity: Rated at 10kA for dependable fault protection in high-load environments.
• Compliant Design: Independently tested and certified to BS EN 62606 / IEC 61009-1 standards.

Technical Specification

• Poles: 3P+N
• Rated Current: 50A
• Tripping Curve: B Curve
• Rated Short Circuit Capacity: 10kA
• Residual Operating Current: 30mA

✅ Rely on the FuseBox R3PN10B5030BD RCBO for professional-grade, safe, and compliant protection in heavy-duty three-phase systems.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
