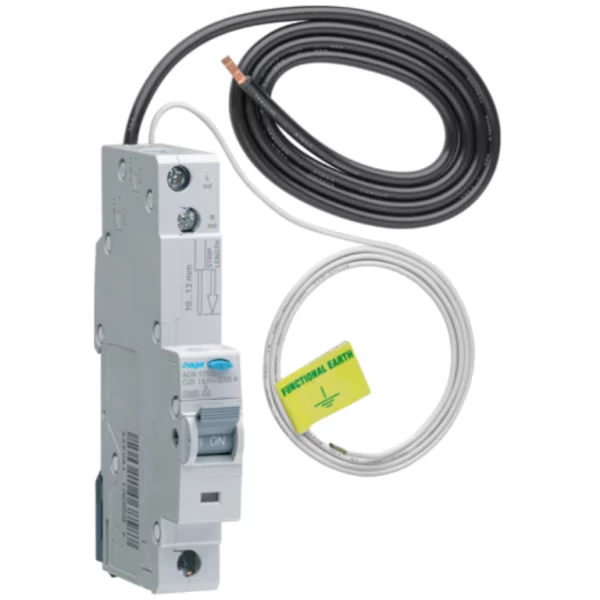

Hager ADA175U 1 Module Single Pole C Curve Type A RCBO 25A 10kA 30mA

Hager ADA175U 25A Type A RCBO – Compact Type C Circuit Protection with 30mA RCD & 10kA Breaking Capacity

The Hager ADA175U is a 1 module, single pole RCBO designed for circuits with moderate inrush currents. With a 25A current rating, Type C tripping curve, and integrated 30mA Type A RCD, it offers reliable protection in commercial and residential installations where space and safety are key.

• All-in-One Protection: Combines overload, short circuit, and 30mA earth leakage protection in a single compact device.
• Type C Tripping Curve: Suitable for circuits with higher inrush currents, including lighting and motor loads.
• 25A Rated Current: Ideal for medium-load applications in both domestic and light commercial environments.
• Type A RCD: Detects both AC and pulsating DC residual currents for compatibility with modern electronic equipment.
• 1 Module Width: Space-saving design fits neatly into standard consumer units and distribution boards.

Technical Specification

• Device Type: RCBO (Residual Current Breaker with Overcurrent Protection)
• Current Rating: 25A
• Tripping Curve: Type C
• RCD Type: Type A
• Breaking Capacity: 10kA
• Residual Current: 30mA
• Modules: 1

✅ Choose the Hager ADA175U RCBO for dependable, compact protection in circuits with moderate inrush characteristics!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
