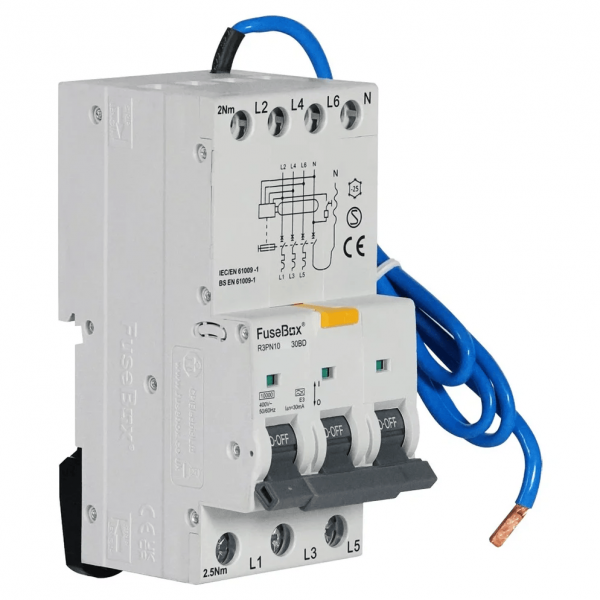

Fusebox R3PN10C2530BD Bi-Directional C Curve Type A RCBO 3P+N 25A 30mA 10kA

FuseBox R3PN10C2530BD 3P+N 25A Type A Bi-Directional RCBO – Reliable C Curve Protection with 10kA Short Circuit Capacity

The FuseBox R3PN10C2530BD RCBO delivers dependable and professional circuit protection for three-phase installations. Featuring Type A sensitivity and a C curve tripping profile, it ensures flexibility, compliance, and safety across a wide range of electrical applications.

• Comprehensive Protection: Combines residual current and overcurrent protection in one compact device.
• Bi-Directional Functionality: Allows line and load connections at either end for simple and flexible installation.
• Type A Sensitivity: Detects both AC and pulsating DC leakage currents for enhanced safety and reliability.
• C Curve Tripping: Designed for mixed and inductive load applications, ensuring consistent fault protection.
• Fully Compliant: Tested and certified to BS EN 62606 / IEC 61009-1 standards for professional installations.

Technical Specification

• Poles: 3P+N
• Rated Current: 25A
• Tripping Curve: C Curve
• Rated Short Circuit Capacity: 10kA
• Residual Operating Current: 30mA

✅ Depend on the FuseBox R3PN10C2530BD RCBO for professional, safe, and compliant C curve protection in three-phase electrical systems.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
