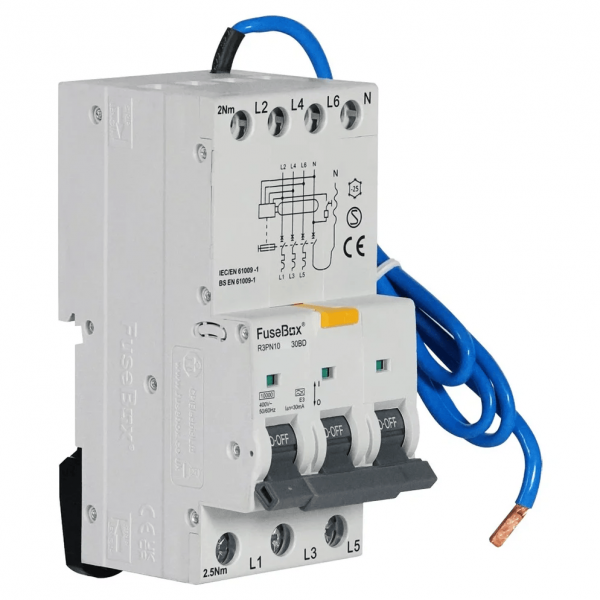

Fusebox R3PN10C4030BD Bi-Directional C Curve Type A RCBO 3P+N 40A 30mA 10kA

FuseBox R3PN10C4030BD 3P+N 40A Type A Bi-Directional RCBO – High-Performance C Curve Protection with 10kA Short Circuit Capacity

The FuseBox R3PN10C4030BD RCBO delivers robust, professional-grade protection for three-phase electrical systems. With a C curve tripping profile and Type A sensitivity, it provides dependable, flexible, and compliant circuit protection for modern installations.

• Comprehensive Protection: Combines residual current and overcurrent protection in one durable, compact unit.
• Bi-Directional Functionality: Allows line and load connections from either end for ease of installation.
• Type A Sensitivity: Detects both AC and pulsating DC leakage currents to ensure enhanced electrical safety.
• C Curve Tripping: Designed for circuits with inductive or mixed loads, offering precise fault response.
• Fully Certified: Independently tested to BS EN 62606 / IEC 61009-1 standards for professional compliance.

Technical Specification

• Poles: 3P+N
• Rated Current: 40A
• Tripping Curve: C Curve
• Rated Short Circuit Capacity: 10kA
• Residual Operating Current: 30mA

✅ Choose the FuseBox R3PN10C4030BD RCBO for strong, compliant, and reliable C curve protection in demanding three-phase installations.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
