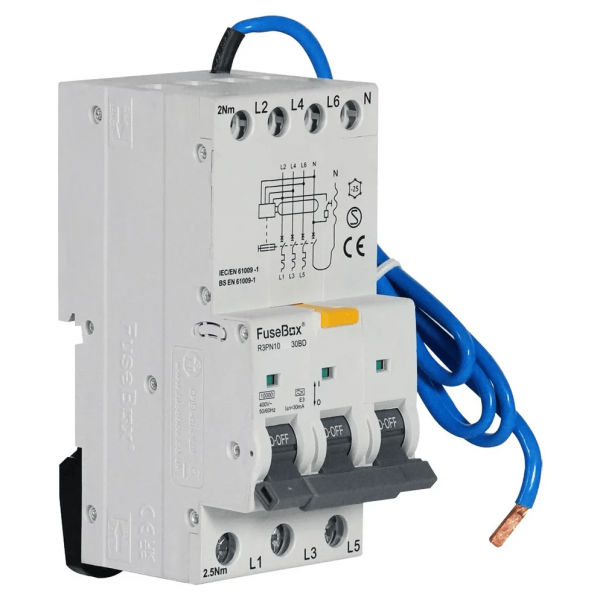

Fusebox R3PN10C4530BD Bi-Directional C Curve Type A RCBO 3P+N 45A 30mA 10kA

FuseBox R3PN10C4530BD 3P+N 45A Type A Bi-Directional RCBO – Heavy-Duty C Curve Protection with 10kA Short Circuit Capacity

The FuseBox R3PN10C4530BD RCBO provides powerful and dependable protection for three-phase electrical installations. Featuring a C curve tripping characteristic and Type A sensitivity, it ensures robust, flexible, and compliant performance for professional use in demanding environments.

• Dual Protection: Combines residual current and overcurrent protection in one compact, efficient unit.
• Bi-Directional Design: Allows line and load connections at either end, simplifying installation and wiring flexibility.
• Type A Sensitivity: Detects AC and pulsating DC leakage currents for advanced electrical safety.
• C Curve Tripping: Suitable for inductive and mixed load circuits, providing consistent and reliable fault protection.
• Certified Compliance: Tested and approved to BS EN 62606 / IEC 61009-1 standards for professional assurance.

Technical Specification

• Poles: 3P+N
• Rated Current: 45A
• Tripping Curve: C Curve
• Rated Short Circuit Capacity: 10kA
• Residual Operating Current: 30mA

✅ Depend on the FuseBox R3PN10C4530BD RCBO for professional-grade, safe, and compliant C curve protection in heavy-duty three-phase systems.

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
