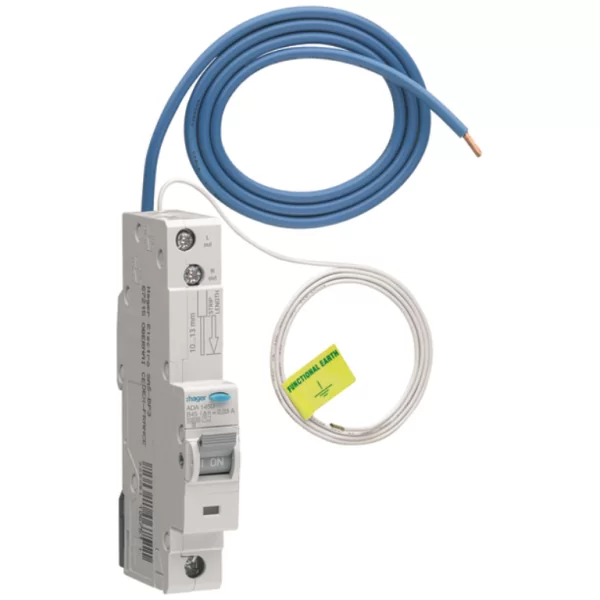

Hager ADA145U 1 Module Single Pole B Curve Type A RCBO 45A 10kA 30mA

Hager ADA145U 45A Type A RCBO – High-Capacity, Space-Saving Protection with 30mA RCD & 10kA Breaking Capacity

The Hager ADA145U is a 1 module, single pole RCBO offering combined protection against overload, short circuit, and earth leakage faults. With a 45A rating, Type A RCD functionality, and a robust 10kA breaking capacity, it’s ideal for high-demand residential and light commercial circuits.

• Integrated Protection: Combines overload, short circuit, and 30mA earth fault protection in one compact device.
• Type A RCD: Detects both AC and pulsating DC leakage currents – perfect for modern appliances and electronic equipment.
• 45A Rated Current: Suitable for high-load final circuits requiring dependable and compliant protection.
• 10kA Breaking Capacity: Provides strong fault current interruption, supporting safe disconnection in demanding environments.
• Compact Installation: 1 module width fits neatly into standard consumer units, saving valuable space.

Technical Specification

• Device Type: RCBO (Residual Current Breaker with Overcurrent Protection)
• Current Rating: 45A
• Tripping Curve: Type B
• RCD Type: Type A
• Breaking Capacity: 10kA
• Residual Current: 30mA
• Modules: 1

✅ Choose the Hager ADA145U RCBO for compact, high-capacity protection across critical and high-load circuits!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
