New

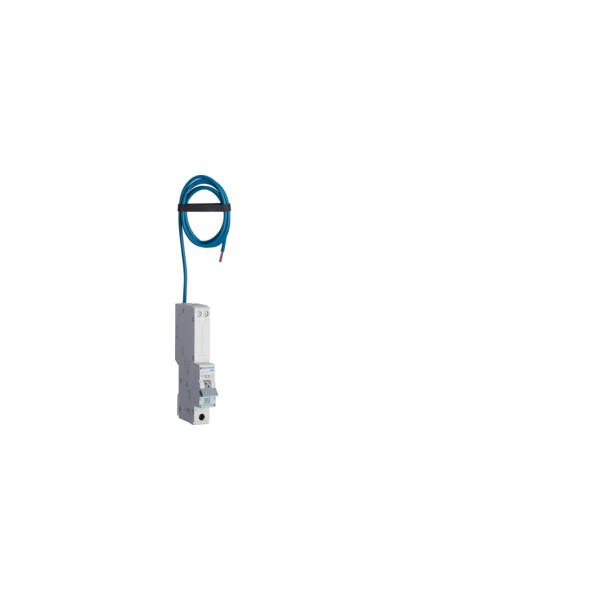

Hager ARL982U RCBO with Dangerous Arc Detection 1M 32A C Curve 6kA Type A 30mA LFL 1m

ARL982U

Est 3-4 day delivery (Subject to availability)
£111.00 inc Vat
£92.50 ex Vat
Free delivery for orders over £100 ex VAT

Hager ARL982U Type A RCBO with Arc Fault Detection – Enhanced Protection for High-Demand Installations

The Hager ARL982U combines RCBO and AFDD technology in a single compact 1P+N device, providing advanced protection against overcurrent, residual current, and dangerous arc faults. Its C-curve tripping characteristic is ideal for high-load and inductive circuits with higher inrush currents, such as motors, pumps, and large lighting systems.

  • Arc Fault Detection: Detects and isolates hazardous arcs to prevent potential fire hazards.
  • Triple Circuit Protection: Integrates MCB, RCD, and AFDD in one compact module.
  • Type A Sensitivity: Protects against AC and pulsating DC residual currents for modern load safety.
  • C-Curve Tripping: Designed to handle high inrush currents without nuisance tripping.
  • 1m LFL Lead Included: Pre-fitted lead allows for fast, professional installation.
Technical Specification
  • Poles: 1P+N
  • Rated Current: 32A
  • Tripping Curve: C-curve
  • Rated Short-Circuit Capacity: 6kA
  • Residual Current Sensitivity: 30mA, Type A

✅ Choose the Hager ARL982U for maximum C-curve performance and advanced AFDD protection on demanding circuits.

Technical Information
Trip Type C Curve
Short Circuit Rating 6kA
Product RCBO
Type Singe Pole + N
Current Rating 32A
Number Of Poles Single Pole (1P)
