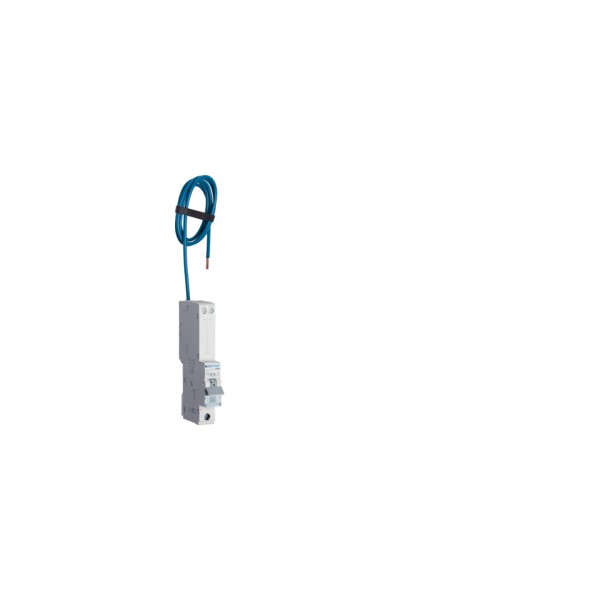

Hager ARL960U RCBO with Dangerous Arc Detection 1M 10A C Curve 6kA Type A 30mA LFL 1m

Hager ARL960U Type A RCBO with Arc Fault Detection – Enhanced Protection for High-Demand Installations

The Hager ARL960U combines RCBO and AFDD technology in a single compact 1P+N device, providing protection against overcurrent, residual current, and dangerous arc faults. With a C-curve tripping profile, it is ideal for circuits with higher inrush currents, such as motor loads and certain lighting systems.

• Arc Fault Detection: Identifies and isolates dangerous arcs to prevent electrical fires.
• Triple Protection: MCB, RCD, and AFDD functions in one unit for maximum safety.
• Type A Sensitivity: Detects both AC and pulsating DC leakage currents for modern load protection.
• C-Curve Tripping: Suitable for equipment with higher start-up or inrush currents.
• Pre-Fitted 1m LFL Lead: Speeds up installation and ensures a professional finish.

Technical Specification

• Poles: 1P+N
• Rated Current: 10A
• Tripping Curve: C-curve
• Rated Short-Circuit Capacity: 6kA
• Residual Current Sensitivity: 30mA, Type A

✅ Choose the Hager ARL960U for dependable high-inrush circuit protection with advanced AFDD safety.
