Hager ARL956U RCBO with Dangerous Arc Detection 1M 6A C Curve 6kA Type A 30mA LFL 1m
ARL956U

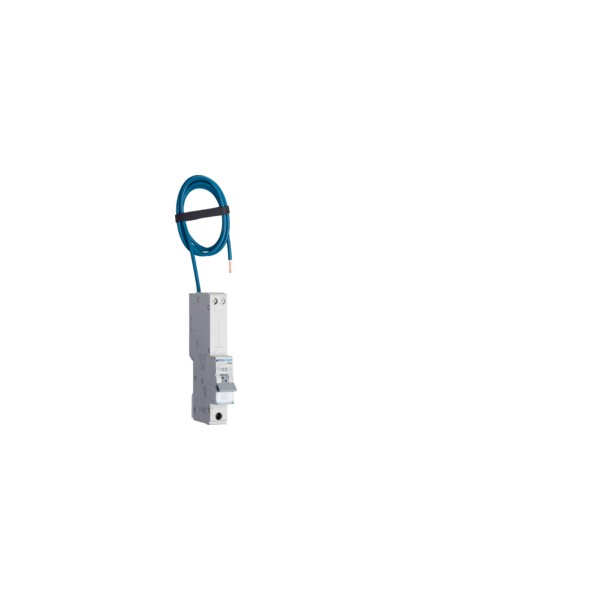

Hager ARL956U Type A RCBO with Arc Fault Detection – Enhanced Protection for Domestic & Commercial Installations
The Hager ARL956U combines RCBO functionality with built-in Arc Fault Detection Device (AFDD) technology, providing protection against overcurrent, residual current, and dangerous arc faults in a single compact module. With a C-curve tripping characteristic, it’s well-suited to circuits with higher inrush currents.
- Arc Fault Detection: Identifies and isolates dangerous arcs before they can cause electrical fires.
- Triple Protection: MCB, RCD, and AFDD features in one device for maximum safety.
- Type A Sensitivity: Detects both AC and pulsating DC residual currents, ideal for modern equipment.
- C-Curve Tripping: Suitable for inductive loads with higher start-up currents.
- Pre-Fitted 1m LFL Lead: Enables quick, professional installation.
Technical Specification
- Poles: 1P+N
- Rated Current: 6A
- Tripping Curve: C-curve
- Rated Short-Circuit Capacity: 6kA
- Residual Current Sensitivity: 30mA, Type A
✅ Choose the Hager ARL956U for advanced arc fault protection with a C-curve profile for demanding circuits.
| Trip Type | C Curve |
| Short Circuit Rating | 6kA |
| Product | RCBO |
| Type | Singe Pole + N |
| Current Rating | 6A |
| Number Of Poles | Single Pole (1P) |
