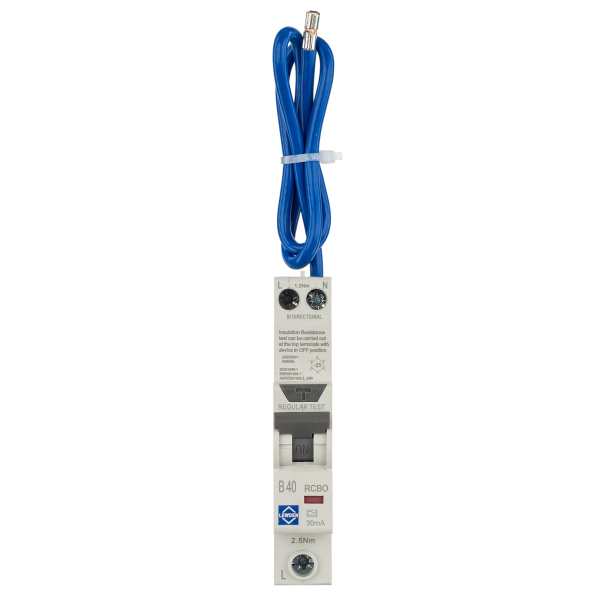

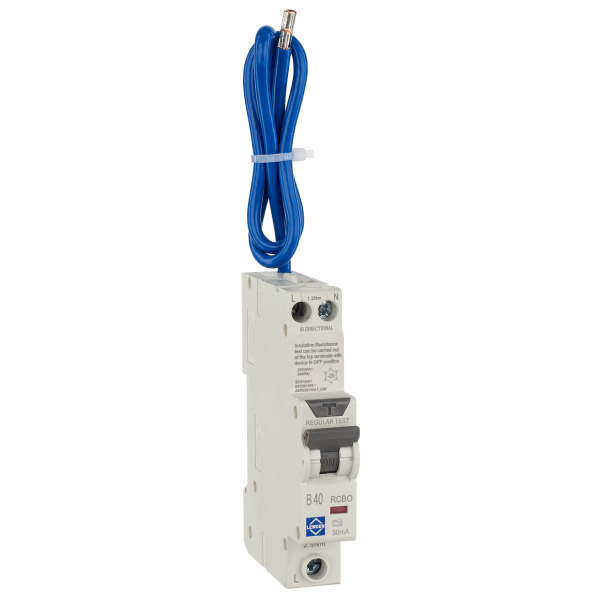

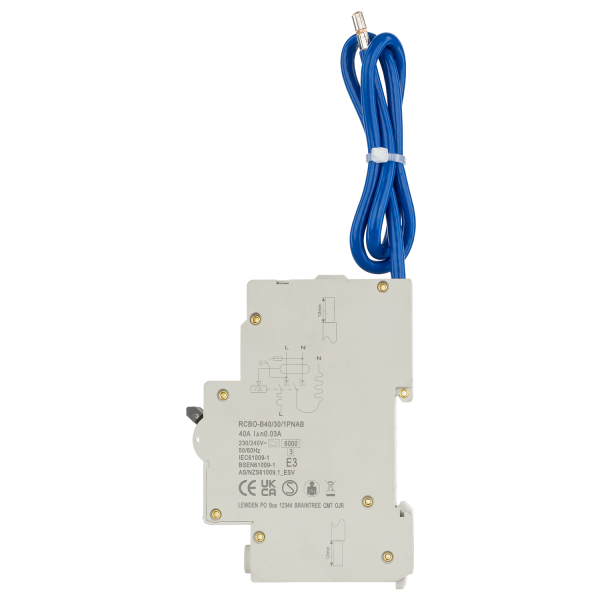

Lewden RCBO-B40/30/1PNAB Compact Double Pole B Curve Type A Bi-Directional RCBO With Switched Neutral 1P+N 40A 30mA

Compact Double Pole B Curve Type A Bi-Directional RCBO – 1P+N, 30mA with Switched Neutral for Enhanced Protection

This high-performance RCBO offers advanced circuit protection by integrating overcurrent and residual current protection in a compact double-pole design. With a switched neutral and bi-directional operation, it ensures increased safety and flexibility for residential and commercial electrical installations.

• Compact Double Pole Design: 1P+N configuration for space-saving installation in consumer units and distribution boards.
• B Curve Tripping Characteristic: Designed for general applications, offering protection against overloads and short circuits.
• Type A RCD Protection: Detects AC and pulsating DC residual currents for enhanced electrical safety.
• Bi-Directional Functionality: Provides protection regardless of power flow direction, ensuring versatility.
• Switched Neutral Feature: Enhances safety by isolating both live and neutral conductors during disconnection.

Technical Specification

• Configuration: 1P+N (Single Pole + Neutral)
• Tripping Curve: B Curve
• Residual Current Type: Type A
• Rated Current: 40A
• Breaking Capacity: 6kA
• Rated Residual Operating Current: 30mA
• Neutral Switching: Yes
• Bi-Directional Protection: Yes
• Mounting: DIN Rail
• Standards Compliance: IEC/EN 61009-1

✅ Upgrade your electrical safety with this advanced RCBO, designed for reliability and compliance!
