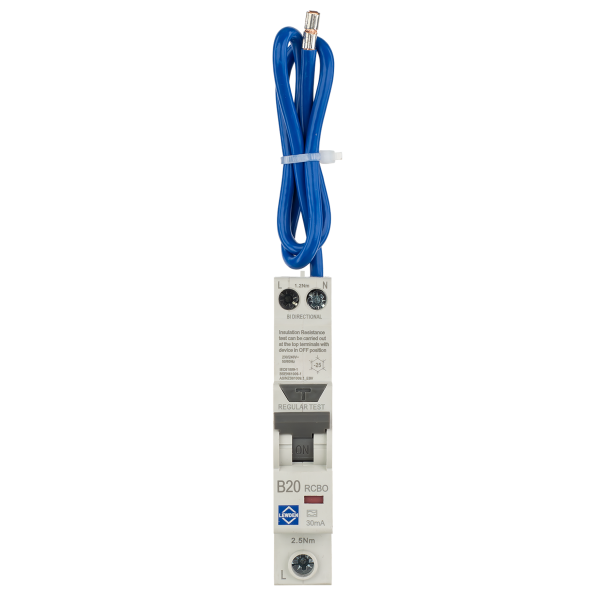

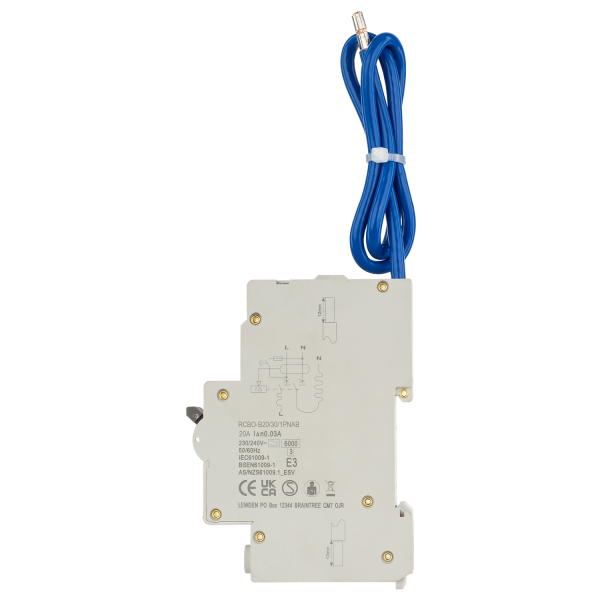

Lewden RCBO-B20/30/1PNAB Compact Double Pole B Curve Type A Bi-Directional RCBO With Switched Neutral 1P+N 20A 30mA
RCBO-B20/30/1PNAB
Compact Double Pole B Curve Type A Bi-Directional RCBO – 1P+N, 30mA with Switched Neutral for Enhanced Protection
This high-performance RCBO offers advanced circuit protection by integrating overcurrent and residual current protection in a compact double-pole design. With a switched neutral and bi-directional operation, it ensures increased safety and flexibility for residential and commercial electrical installations.
- Compact Double Pole Design: 1P+N configuration for space-saving installation in consumer units and distribution boards.
- B Curve Tripping Characteristic: Designed for general applications, offering protection against overloads and short circuits.
- Type A RCD Protection: Detects AC and pulsating DC residual currents for enhanced electrical safety.
- Bi-Directional Functionality: Provides protection regardless of power flow direction, ensuring versatility.
- Switched Neutral Feature: Enhances safety by isolating both live and neutral conductors during disconnection.
Technical Specification
- Configuration: 1P+N (Single Pole + Neutral)
- Tripping Curve: B Curve
- Residual Current Type: Type A
- Rated Current: 20A
- Breaking Capacity: 6kA
- Rated Residual Operating Current: 30mA
- Neutral Switching: Yes
- Bi-Directional Protection: Yes
- Mounting: DIN Rail
- Standards Compliance: IEC/EN 61009-1
✅ Upgrade your electrical safety with this advanced RCBO, designed for reliability and compliance!
| Trip Type | B Curve Type A |
| Sensitivity | 30 mA |
| Product | RCBO |
| Type | Singe Pole Compact |
| Voltage | 230 V |
| Pole Configuration | SP+N |
| Current Rating | 20A |
| Rcd Sensitivity | 30 mA |
| Number Of Poles | Double Pole (2P) |
| Number Of Modules | 1 |
