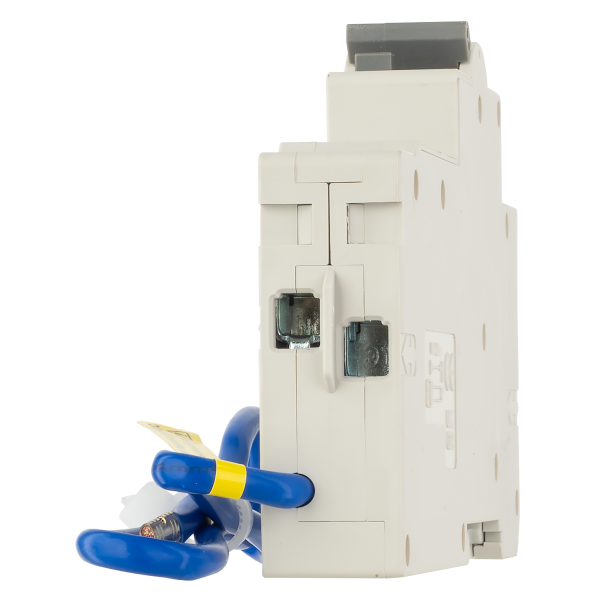

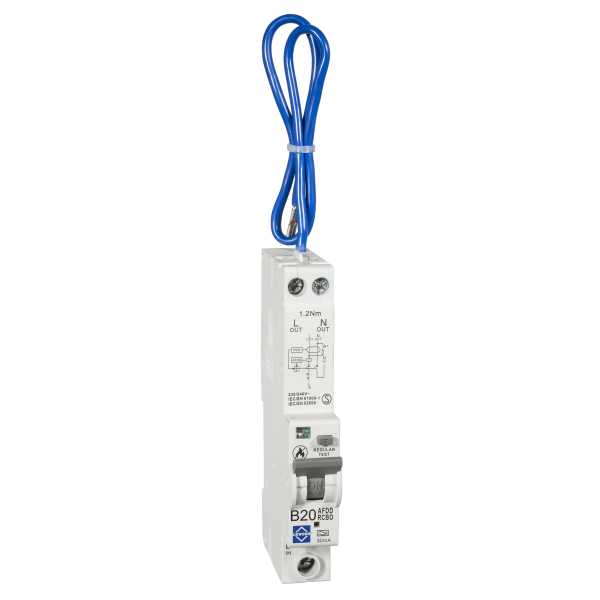

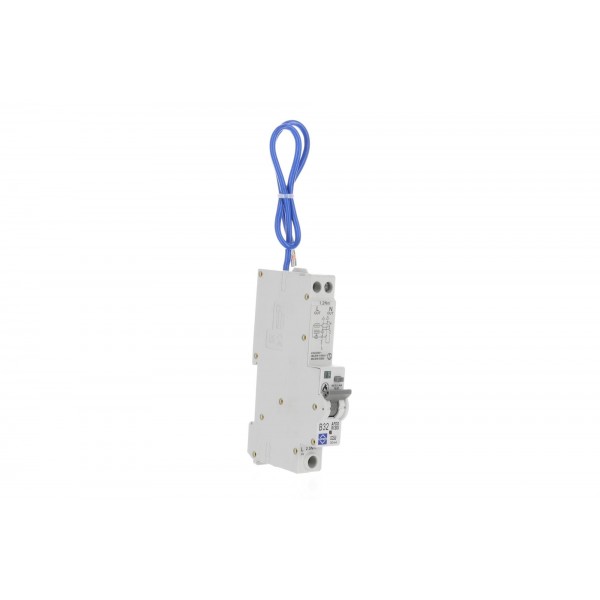

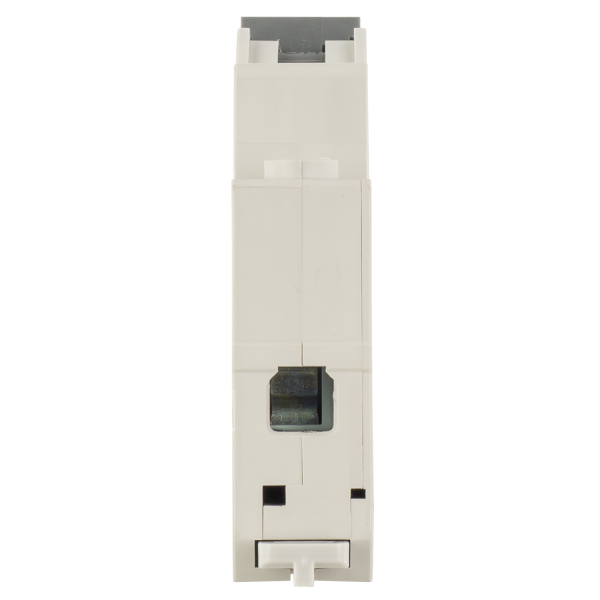

Lewden P04-B20/30/1PNA 1 Module Double Pole 20A B Curve Type A AFDD Combined RCBO 30mA
P04-B20/30/1PNA
1 in stock for next day delivery see cut off times
13 in stock for 2-3 day delivery see more info
£127.09
inc Vat
£105.91
ex Vat
Free delivery for orders over £100 ex VAT
AFDD RCBO B20A 30MA
Description
- Combined AFDD and RCBO.
- Provides Arc Fault protection alongside overcurrent, short circuit, residual current and over-voltage protection.
- Class A, 30mA RCD.
- Single module 18mm width device, fully interchangeable with Switched and un-switched Neutral RCBO’s, and single pole MCB’s.
- Provides LED fault identification on reset.
- Double Pole Switching for complete isolation in the event of a fault.
- Switched Neutral pole significantly reduces the installation and commissioning time.
- Available in current ratingsd from 6-40A.
- B curve overcurrent.
- 6kA short circuit breaking capacity.
- Suitable for TN & TT earthing systems.
- Conforms to BS EN62606 (AFDD) and BS EN61009-1 (RCBO).
Technical Information
| Trip Type | B Curve Type A |
| Product | RCBO |
| Type | Single Pole + AFDD |
| Current Rating | 20A |
| Number Of Poles | Double Pole (2P) |
