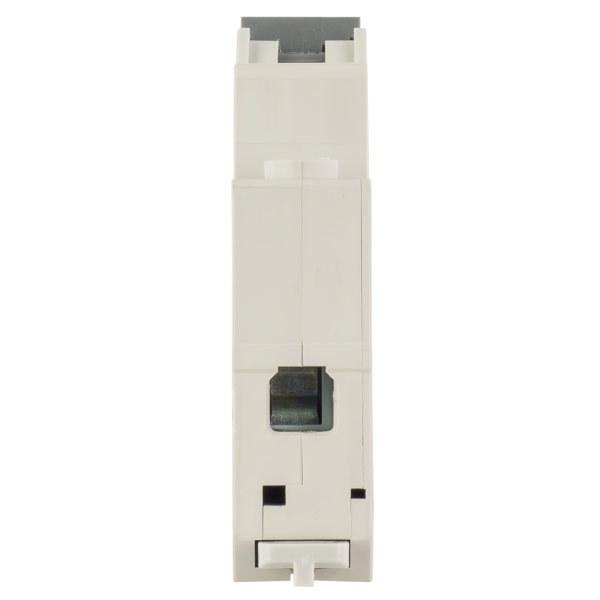

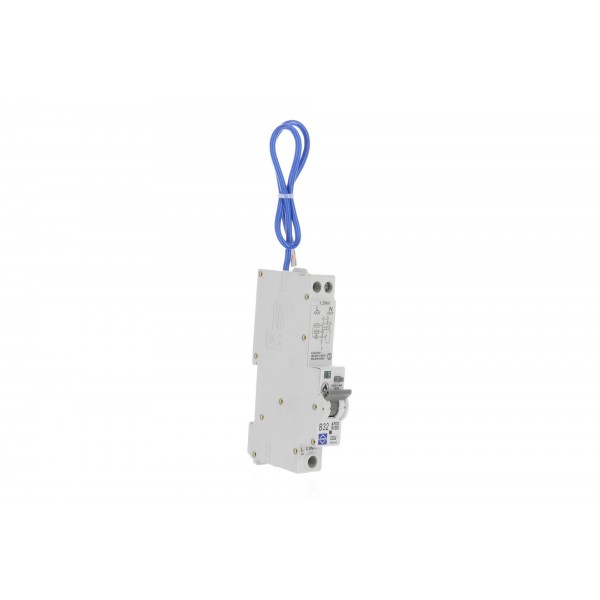

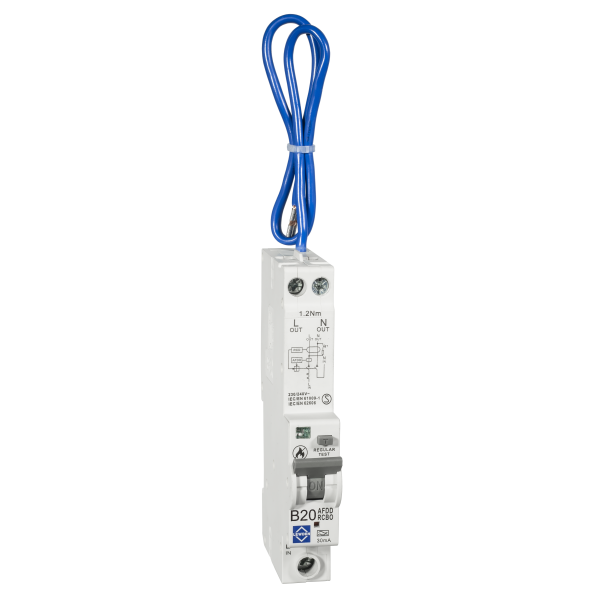

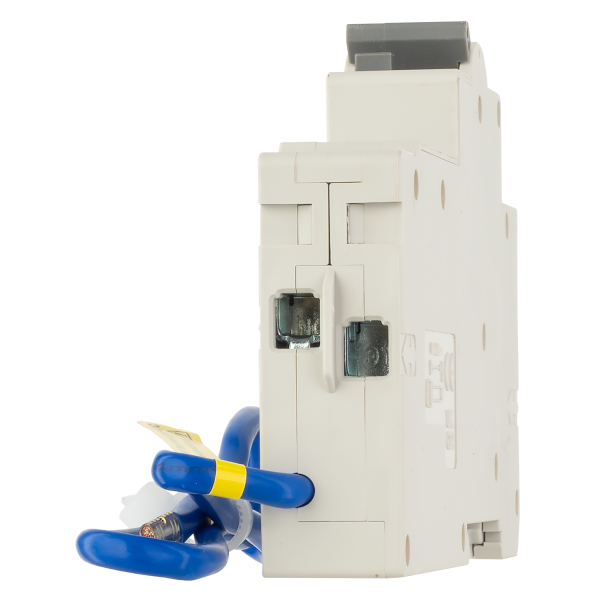

Lewden P04-B20/30/1PNA 1 Module Double Pole 20A B Curve Type A AFDD Combined RCBO 30mA
P04-B20/30/1PNA
1 Module Double Pole 20A B Curve Type A AFDD Combined RCBO – 30mA for Advanced Fire & Fault Protection
This compact AFDD (Arc Fault Detection Device) combined RCBO provides comprehensive circuit protection by integrating arc fault detection, residual current protection, and overcurrent protection in a single device. With a B curve tripping characteristic and Type A RCD functionality, it enhances fire prevention and electrical safety in residential and commercial installations.
- Compact Double Pole Design: Space-saving 1-module RCBO with live and neutral disconnection for added safety.
- B Curve Tripping Characteristic: Provides protection against overloads and short circuits in standard circuits with moderate inrush currents.
- Type A RCD Protection: Detects AC and pulsating DC residual currents for enhanced shock protection.
- Arc Fault Detection (AFDD): Identifies and mitigates dangerous arc faults to prevent electrical fires.
- 20A Rated Current: Designed for circuits requiring precise fault detection and protection.
- 30mA Sensitivity: Offers effective leakage current protection to reduce electric shock risks.
- High Reliability & Performance: Suitable for residential, commercial, and light industrial environments.
Technical Specification
- Configuration: Double Pole (2P)
- Tripping Curve: B Curve
- Residual Current Type: Type A
- Arc Fault Detection: Yes
- Rated Current: 20A
- Breaking Capacity: 6kA
- Rated Residual Operating Current: 30mA
- Mounting: DIN Rail
- Standards Compliance: IEC/EN 61009-1 & IEC/EN 62606
✅ Ensure superior fire prevention and electrical safety with this advanced AFDD combined RCBO!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Trip Type | B Curve Type A |
| Product | RCBO |
| Type | Single Pole + AFDD |
| Current Rating | 20A |
| Number Of Poles | Double Pole (2P) |
