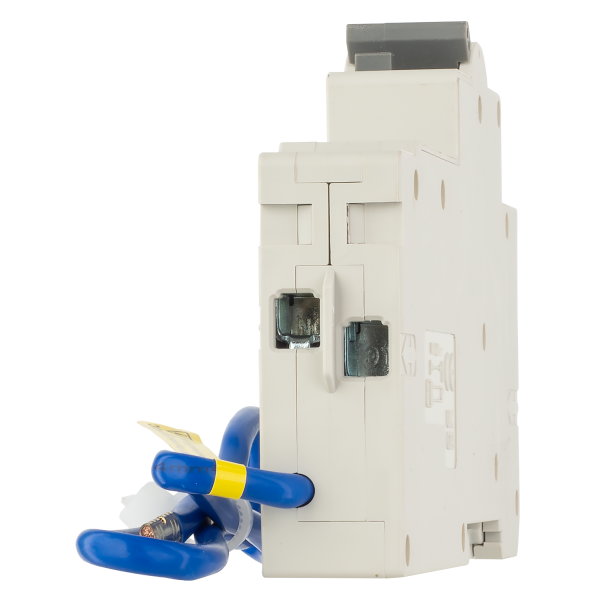

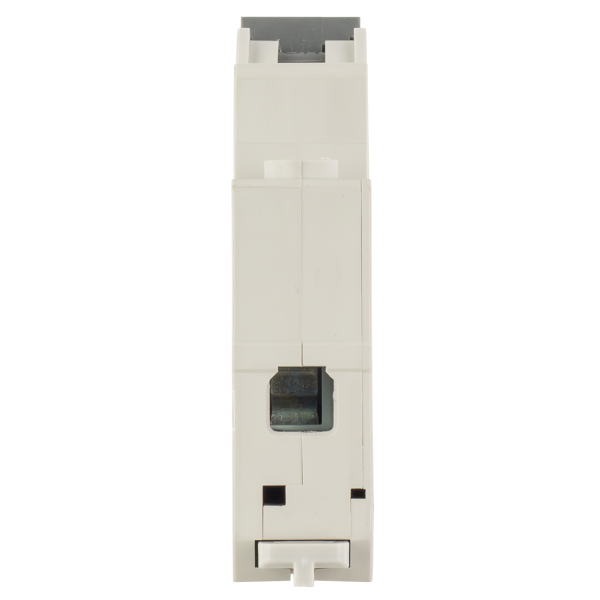

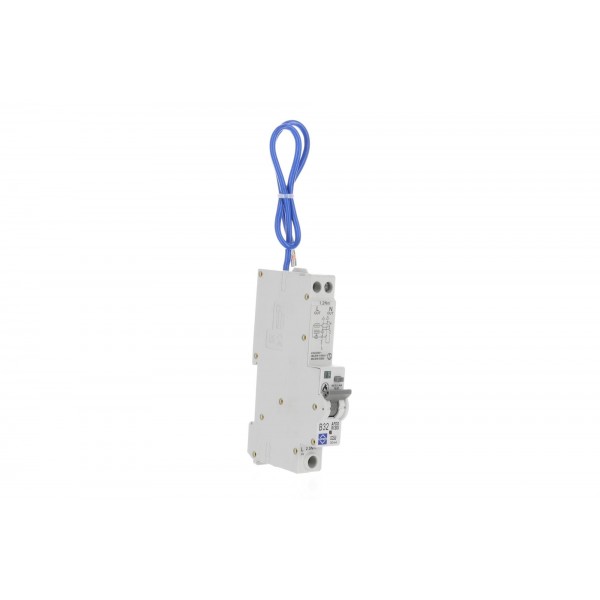

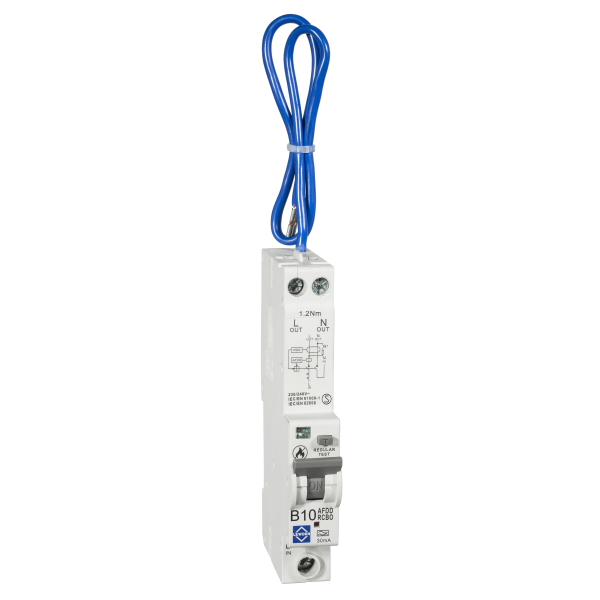

Lewden P04-B10/30/1PNA 1 Module Double Pole 10A B Curve AFDD Combined RCBO 30mA

Lewden P04-B10/30/1PNA 1 Module Double Pole 10A B Curve Type A AFDD Combined RCBO 30mA

P04-B10/30/1PNA

Est 3-4 day delivery (Subject to availability)
£108.78 inc Vat
£90.65 ex Vat
Free delivery for orders over £100 ex VAT

1 Module Double Pole 10A B Curve Type A AFDD Combined RCBO – 30mA for Advanced Fire & Fault Protection

This compact AFDD (Arc Fault Detection Device) combined RCBO provides comprehensive circuit protection by integrating arc fault detection, residual current protection, and overcurrent protection in a single device. With a B curve tripping characteristic and Type A RCD functionality, it enhances fire prevention and electrical safety in residential and commercial installations.

  • Compact Double Pole Design: Space-saving 1-module RCBO with live and neutral disconnection for added safety.
  • B Curve Tripping Characteristic: Provides protection against overloads and short circuits in standard circuits with moderate inrush currents.
  • Type A RCD Protection: Detects AC and pulsating DC residual currents for enhanced shock protection.
  • Arc Fault Detection (AFDD): Identifies and mitigates dangerous arc faults to prevent electrical fires.
  • 10A Rated Current: Designed for circuits requiring precise fault detection and protection.
  • 30mA Sensitivity: Offers effective leakage current protection to reduce electric shock risks.
  • High Reliability & Performance: Suitable for residential, commercial, and light industrial environments.

Technical Specification

  • Configuration: Double Pole (2P)
  • Tripping Curve: B Curve
  • Residual Current Type: Type A
  • Arc Fault Detection: Yes
  • Rated Current: 10A
  • Breaking Capacity: 6kA
  • Rated Residual Operating Current: 30mA
  • Mounting: DIN Rail
  • Standards Compliance: IEC/EN 61009-1 & IEC/EN 62606

Ensure superior fire prevention and electrical safety with this advanced AFDD combined RCBO!



Description



Technical Information
Trip Type B Curve Type A
Product RCBO
Type Single Pole + AFDD
Current Rating 10A
Number Of Poles Double Pole (2P)
