New

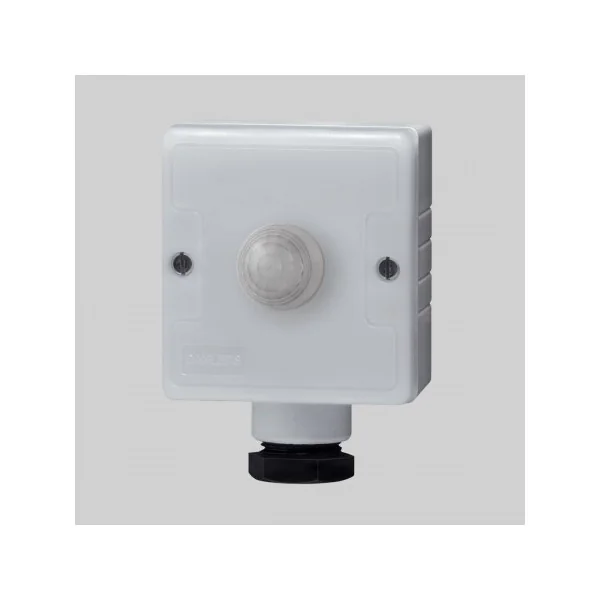

Danlers CEPD17MH Outdoor Weatherproof PIR 120° Compact Occupancy Detector IP66

CEPD17MH

Est 3-4 day delivery (Subject to availability)
£71.10 inc Vat
£59.25 ex Vat
Free delivery for orders over £100 ex VAT

Danlers CEPD 17MH IP66 Compact PIR Sensor – High Mount Presence Detection for Outdoor Lighting Control

The Danlers CEPD 17MH is a robust, high-mount PIR sensor designed for outdoor lighting applications where elevated installation is required. With an IP66 rating and compact design, it offers reliable motion detection and energy-saving functionality for both security and convenience.

  • High-Mount Detection: Designed for mounting heights up to 17m with a detection range of up to 24m and 120° coverage.
  • Automatic Light Control: Activates lighting when presence is detected and switches off after a selected delay period.
  • Adjustable Time Delay: Settable from 10 seconds to 40 minutes in 9 steps for flexible lighting control.
  • Weatherproof Housing: Durable IP66-rated polycarbonate body ensures performance in demanding outdoor environments.
  • Compact & Versatile: Small form factor allows easy integration into new or existing outdoor lighting systems, ideal for ceiling mounting.
Technical Specification
  • Mounting: Surface (Ceiling)
  • IP Rating: IP66
  • Detection Range: Up to 24 metres
  • Detection Angle: 120°
  • Dimensions: 75 x 60 x 37 mm

Install the Danlers CEPD 17MH for reliable, high-level motion detection and enhanced control of exterior lighting systems!

Technical Information
C/w Photocell N
Product Presence Detector
Type PIR
Ingress Protection IP66
Colour White
Length 75 mm
Detection Distance 24 Metres
Mounting Wall
Time Lag Range 10sec to 40min in 9 Step
Material ABS
Width 60 mm
Depth 37 mm
Current Rating 6 A
Ce Approved Y
C/w Pir Y
Delay Time Range 10 secs to 40 mins
Supply Voltage 220-240 V
Maximum Load (w) 10A W
