Timeguard PDFM362AB White 2 Channel Flush Ceiling Mounting 360° PIR Presence Detector

PDFM362AB

2 in stock for next day delivery see cut off times
12 in stock for 2-3 day delivery see more info
£50.10 inc Vat
£41.75 ex Vat
Trustpilot
Trustpilot
Free delivery for orders over £100 ex VAT

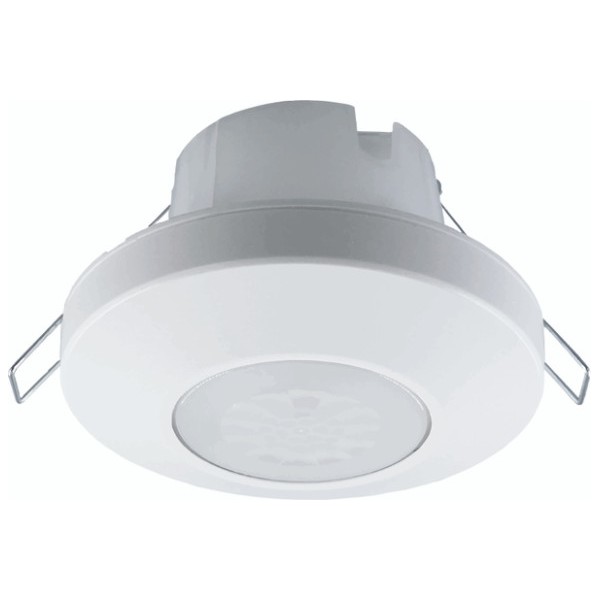

Timeguard PDFM362AB 2 Channel 360° PIR Presence Detector – Flush Ceiling Mount, White

A professional-grade PIR solution for automated lighting control in workspaces, offices, corridors, and toilets.

  • Versatile Detection Modes – Presence or absence detection for efficient lighting control.
  • High Load Capacity – Supports up to 600W LED load, ideal for commercial applications.
  • Convenient Remote Control Option – Adjustable time delay, lux settings, and sensitivity via optional IR remote (sold separately).
  • Multi-Sensor Integration – Allows parallel wiring for extended coverage.
  • Discreet & Modern Design – Flat PIR lens technology ensures a low-profile installation.
  • Manual Override Feature – Permanent ON function available with the IR10AB remote control.

Technical Specifications

  • Operating Voltage: 230V AC
  • Frequency: 50Hz
  • Installation Type: Flush Mount
  • Earth Class Rating: Class II
  • Operating Temperature: -20°C to 40°C
  • Hole Cut-Out Size: 68mm
  • Standby Consumption: <0.5W
  • Accessories Included: Lens mask, caps

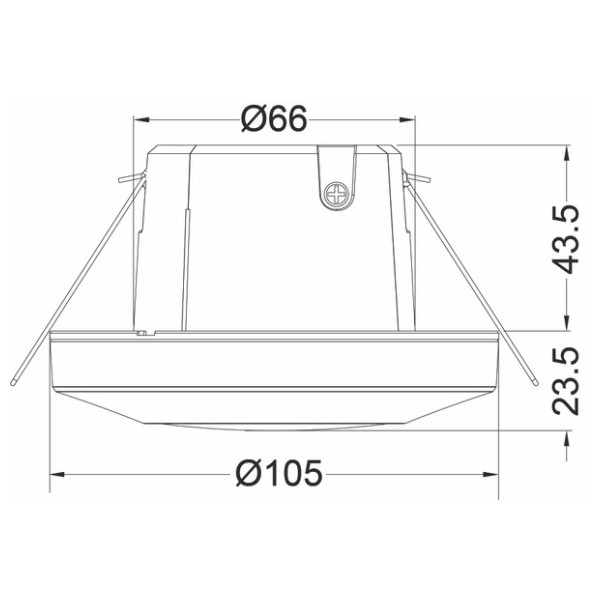

  • Dimensions: 105mm (H) x 105mm (W) x 67mm (D)

✅ Enhance lighting efficiency with the Timeguard PDFM362AB – an intelligent PIR sensor for seamless automation

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)

Technical Information
Product Occupancy Detector
Type PIR
Dimmable N
Ingress Protection IP40
Colour White
Length 105 mm
Warranty 3 Years
Unit Weight 0.198 kg
Detection Distance 7 Metres
Detection Angle 360 Degrees
Mounting Flush
Time Lag Range 5 Seconds to 20 Minutes. User Adjustable
Material Polycarbonate PC
Width 105 mm
Depth 67 mm
C/w Pir Y
Delay Time Range 5 Seconds to 20 Minutes. User Adjustable
C/w Cable N
Number Of Channels 1
Supply Voltage 230 V
Maximum Load (w) 600 W
