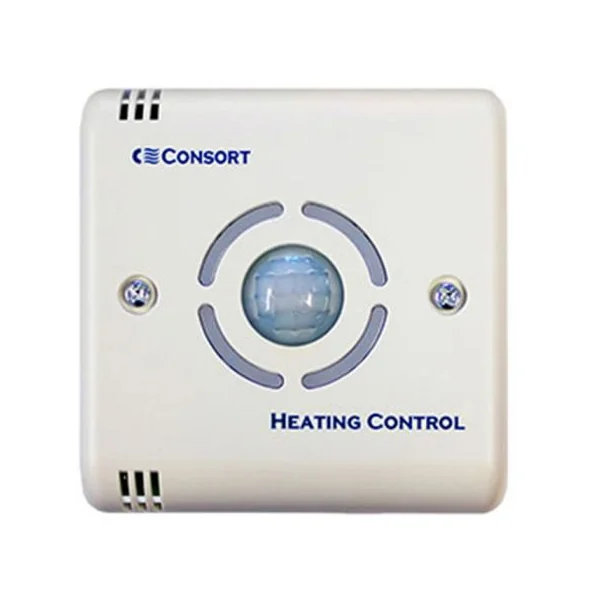

Consort SLPIR Motion Activated Wireless Controller with Run-Back Timer

Consort SLPIR Wireless PIR Controller – Motion-Activated Heating with Run-Back Timer for SL Heaters

The Consort SLPIR is a wireless motion sensor controller designed to operate multiple SL heaters or receivers. It activates a timed heating period when movement is detected within a 5-metre range, ideal for energy-saving control in intermittent-use areas such as corridors, washrooms, or student accommodations.

• Motion-Activated Heating: Detects movement up to 5 metres away, triggering a run-back timer to heat the room to a pre-set comfort level.
• Customisable Timer Settings: Offers 4 run-back periods (5, 15, 30, and 60 minutes), with automatic switch-off or background heating fallback.
• Wide Detection Coverage: 120° horizontal and 60° vertical sensor range for effective room monitoring.
• Comfort & Setback Control: Adjustable comfort temperatures (15°C–35°C) and setback options (0°C–15°C) for frost protection or energy saving.
• Flexible Installation: Can be powered by 240V mains or 12VDC SELV supply and fits most standard single gang boxes; supports external inputs (e.g. timers or BMS).

Technical Specification

• Power Supply: 240V mains or 12VDC
• Compatibility: SL heaters or SL receivers
• Detection Range: Up to 5 metres
• Detection Angle: 120° horizontal, 60° vertical
• Dimensions (W x H x D): 85 x 86 x 26 mm

✅ Install the SLPIR controller for automated, energy-efficient heating that activates only when needed—perfect for managing costs in low-traffic areas!
