Click MM430WH New Media White Triplexer Module With Female IEC TV/Co-Axial + Male IEC FM + Female Satellite Outlets H:50mm x W:50mm
MM430WH
Click MM430WH New Media Triplexer Module – Shielded TV, FM & Satellite Outlets in White

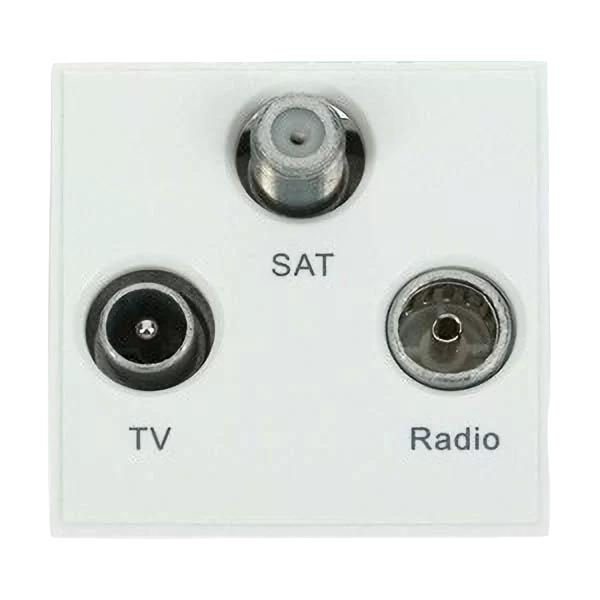

The Click MM430WH is a white shielded triplexer module designed to separate a combined signal input into TV, FM, and Satellite outputs. With three clearly labelled ports—female IEC for TV, male IEC for FM, and female F-type for satellite—it’s ideal for integrated AV setups requiring a single point of media distribution.
- Three-Way Signal Output: Separates TV (IEC female), FM radio (IEC male), and Satellite (F-type female) signals from one input.
- Shielded for Signal Integrity: Minimises signal loss and interference for reliable media performance.
- Use with Signal Combiner: Requires a signal combining distribution amplifier such as a media distribution unit.
- Modular Plate Compatible: Measures 50mm x 50mm to fit New Media multi-aperture faceplates for tailored AV setups.
- Clean White Finish: Designed to blend seamlessly with standard white accessories in residential or commercial spaces.
Technical Specification
- Brand: Click
- Product Code: MM430WH
- Type: Triplexer Module (Shielded)
- Module Size: 50mm x 50mm
- Back Box Depth Required: 47mm minimum
✅ Choose the Click MM430WH for a reliable, modular solution that delivers TV, radio, and satellite signals from a single source!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Range | Scolmore New Media |
| Includes 13a Switch Socket? | N |
| Product | New Media Module |
| Type | Triplexer Module |
| Telephone Master | N |
| Includes Rcd? | N |
| Screwless? | N |
| Telephone Secondary | N |
| Tv Socket | Y |
| Ingress Protection | IP20 |
| Fm/dab | Y |
| Satellite | Y |
| Rj11 | N |
| Rj45 Cat 5e | N |
| Rj45 Cat 6 | N |
| USB Included | N |
| Insert Colour | White |
| Mounting Box Minimum Depth | 35 mm |
| Number Of Gangs | 1 |
| Warranty | 1 Years |
| Mounting | Frame |
| Width | 50 mm |
| Depth | 37 mm |
| Qualifier | Triplexed |
| Ce Approved | N |
| Height | 50 mm |
| Body Material | Polycarbonate |
| Gangs | 1 Gang |
| Neon Indicator | N |
| Face Colour | Polar White |
| Flex Outlet | N |
| Switched/unswitched | Unswitched |
| Fuse Fitted | N |
| Lockable? | N |
