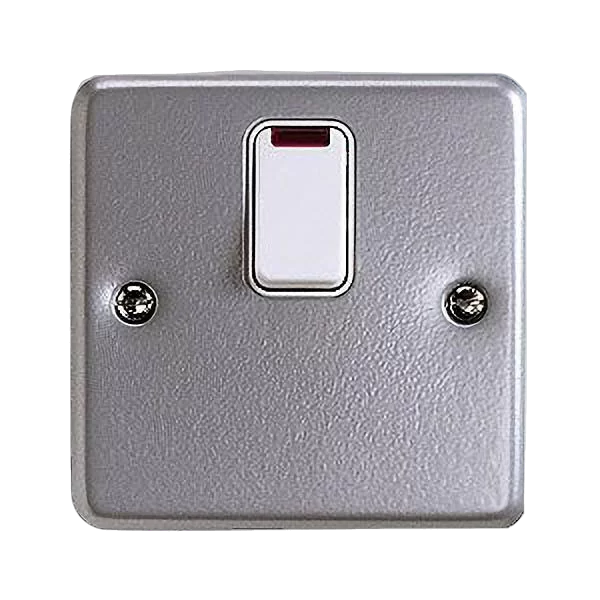

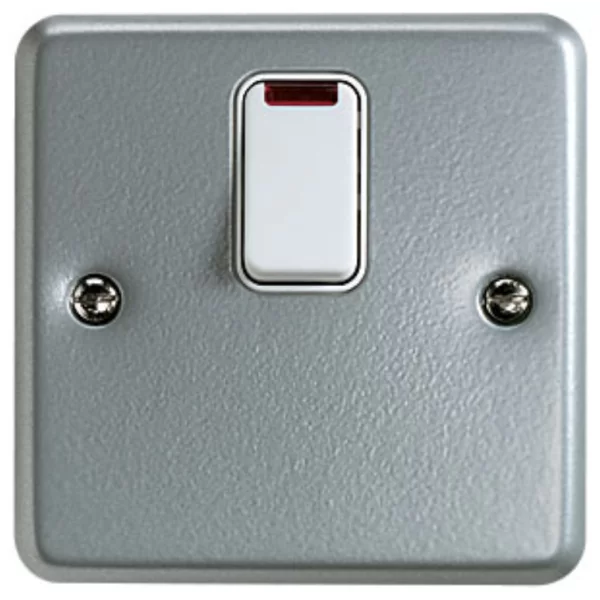

MK Electric K5232ALM Metalclad Plus DP Switch With Neon & Surface Mounting Box 20A
K5232ALM
MK Electric K5232ALM Metalclad Plus 20A Double Pole Switch with Neon & Surface Box – Tough, Surface-Mounted Control for Fixed Appliances
The MK Electric K5232ALM Metalclad Plus Double Pole Switch provides safe, reliable switching for fixed appliances up to 20A. Supplied with a matching surface mounting box and built-in neon indicator, it’s designed for high-traffic or demanding environments such as garages, workshops, and commercial premises.
- 20A Double Pole Switching: Isolates both live and neutral conductors for secure disconnection of fixed loads.
- Built-in Neon Indicator: Clearly displays circuit status, enhancing visibility and operational safety.
- Includes Surface Mounting Box: Ready for surface installation with no need for a separate back box.
- Metalclad Finish: Strong steel construction with scratch-resistant coating, ideal for impact-prone areas.
- Part of the Metalclad Plus Range: Engineered for durability and performance in commercial and industrial settings.
Technical Specification
- Mounting: Surface
- Current Rating: 20A
- Switch Type: Double Pole
- Indicator: Neon
- Finish: Metalclad Aluminium
- Includes: Surface Mounting Box
✅ Opt for the MK K5232ALM for rugged, safe switching with neon indication – perfect for surface-mounted control in tough environments!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Ean Code | 5017490242280 |
| Range | MK Metalclad Plus |
| Includes 13a Switch Socket? | N |
| Product | Double Pole Switch |
| Type | Standard Plate 20 Amp |
| Telephone Master | N |
| Includes Rcd? | N |
| Screwless? | N |
| Telephone Secondary | N |
| Tv Socket | N |
| Ingress Protection | IP2XD |
| Fm/dab | N |
| Satellite | N |
| Rj11 | N |
| Rj45 Cat 5e | N |
| Rj45 Cat 6 | N |
| USB Included | N |
| Fixing Centres | 60.3 mm |
| Number Of Gangs | 1 |
| Voltage | 250 V |
| Indicator Colour | Red |
| Pole Configuration | Double Pole (2P) |
| Mounting | Surface |
| Width | 86 mm |
| Depth | 47 mm |
| Current Rating | 20 A |
| Standards | BS EN 60669-1 |
| Height | 86 mm |
| Body Material | Metalclad |
| Gangs | 1 Gang |
| Neon Indicator | Y |
| Face Colour | Aluminium |
| Ways | 1 Way |
| Rocker Colour | White |
| Flex Outlet | N |
| Switched/unswitched | Switched |
| Fuse Fitted | N |
| Lockable? | N |
