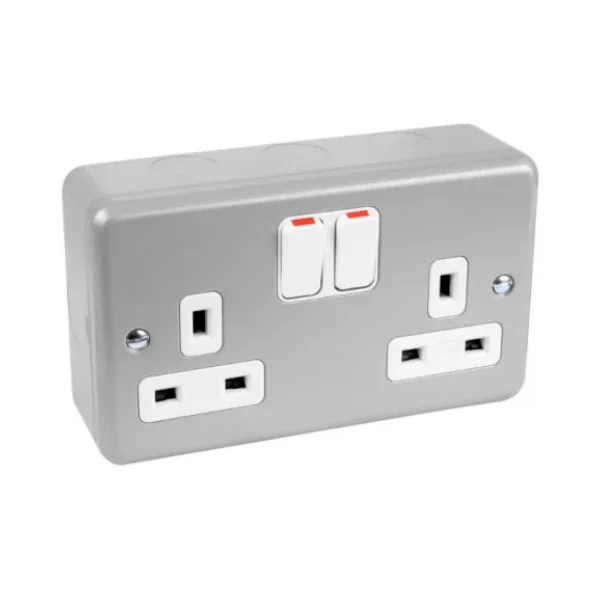

MK Electric K2946ALM Metalclad Plus 2 Gang Double Pole Switchsocket With Surface Mounting Box 13A
K2946ALM
• Dimensions: 86 x 86mm
• Fixing Centres: 60.3mm
A comprehensive range of tough, impact resistant, surface mounted sockets. They have been designed to suit a wide variety of applications in factories, workshops, plant rooms, warehouses, schools and hospitals.
• Conforms to BS 1363 - Part 2 : 1995
• Metallic powder paint - Finish is corrosion and scratch resistant
• Highly impact resistant
• Stylish curved design
• 3 pin operated safety shutter
• Double pole switching
• Moulded ‘on' indicator flash on switches will not rub off – totally safe
• Neon indicators in the switch rockers with 175° visibility in the horizontal and vertical planes
• Additional electrical safety from neutral ‘make first', ‘break last' feature
• Minimum 3mm contact gap
• Switch contacts with silver contacts on both surfaces for good continuity
• Specifically designed back boxes - ensure neat and exact fit
• Boxes available with or without knockouts
• Earth terminal fitted in boxes
• Clear terminal markings for easy identification
• Funnel entrance to terminals enables positive cable connection
• Terminal screws are backed out and captive terminals are upwards facing to make installation easier
• Nominal plate dimensions : 86 x 86 x 51mm
Ean Code | 5017490246042 |
Range | MK Metalclad Plus |
Includes 13a Switch Socket? | Y |
Product | Socket Outlet |
Type | 2 Gang Switched |
Telephone Master | N |
Includes Rcd? | N |
Screwless? | N |
Telephone Secondary | N |
Tv Socket | N |
Ingress Protection | IP2XD |
Fm/dab | N |
Satellite | N |
Rj11 | N |
Rj45 Cat 5e | N |
Rj45 Cat 6 | N |
USB Included | N |
Fixing Centres | 120.6 mm |
Mounting Box Minimum Depth | 25 mm |
Number Of Gangs | 2 |
Voltage | 250 V |
Pole Configuration | Double Pole (2P) |
Mounting | Surface |
Width | 146 mm |
Depth | 51 mm |
Current Rating | 13 A |
Standards | BS 5733 BS 1363 |
Pin Shape | Rectangular |
Height | 86 mm |
Body Material | Metalclad |
Gangs | 2 Gang |
Neon Indicator | N |
Face Colour | Aluminium |
Rocker Colour | White |
Flex Outlet | N |
Switched/unswitched | Switched |
Fuse Fitted | N |
Lockable? | N |
