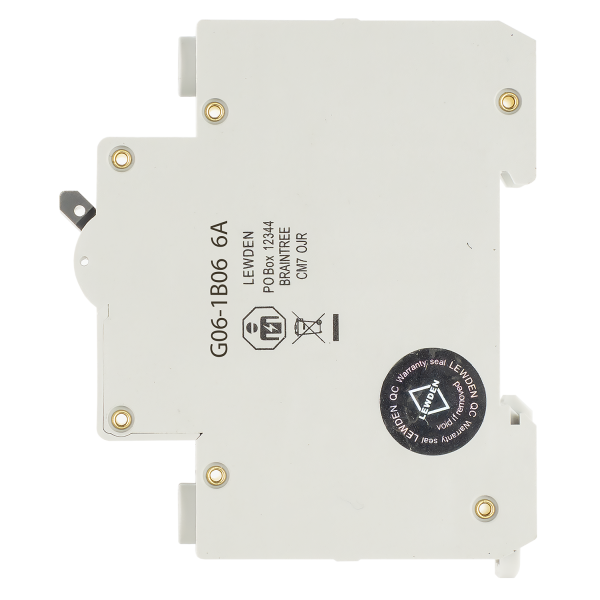

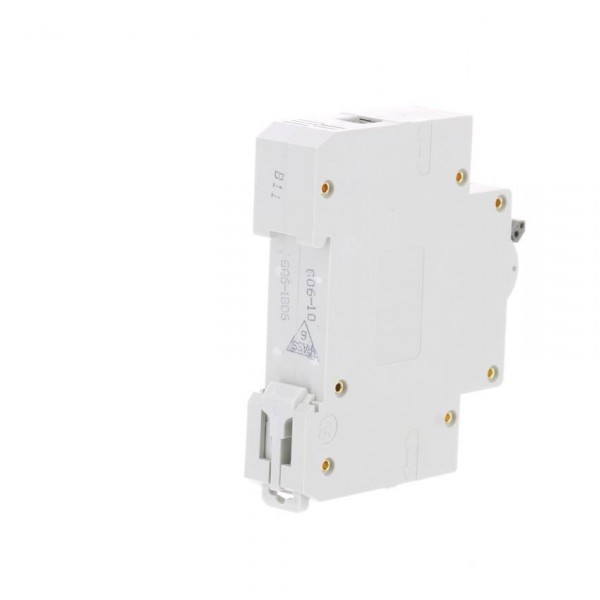

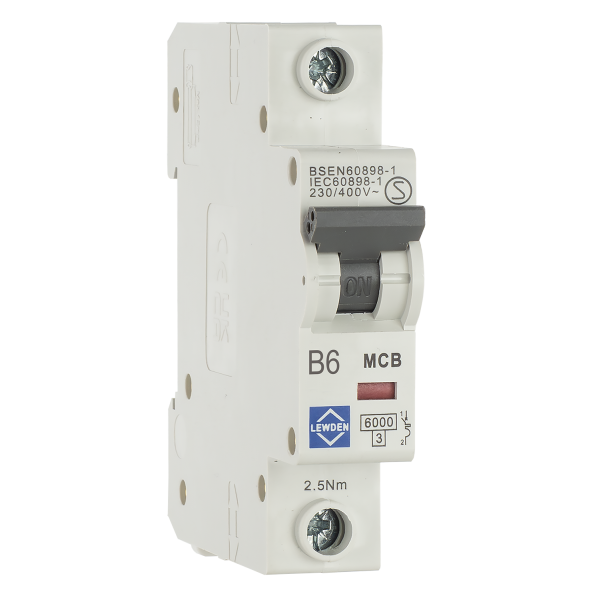

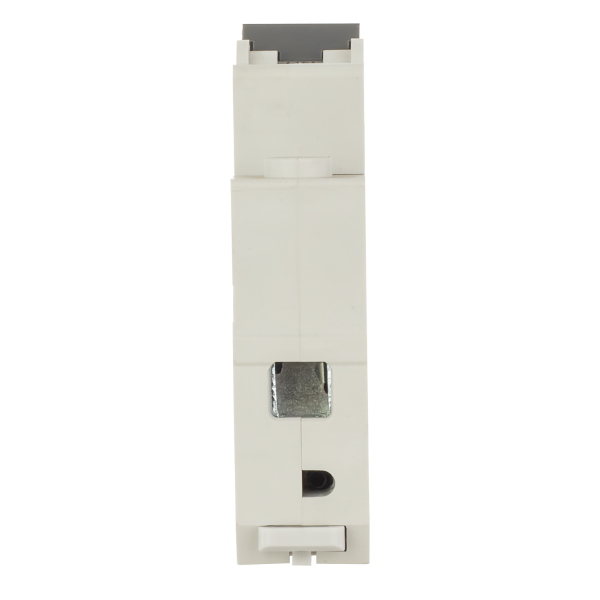

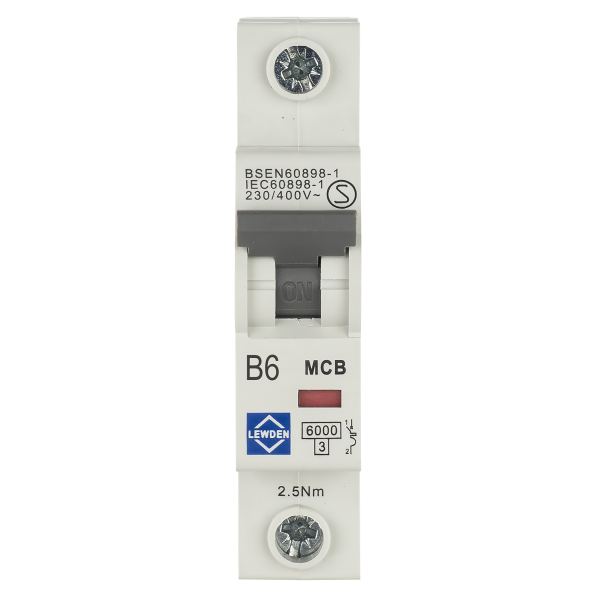

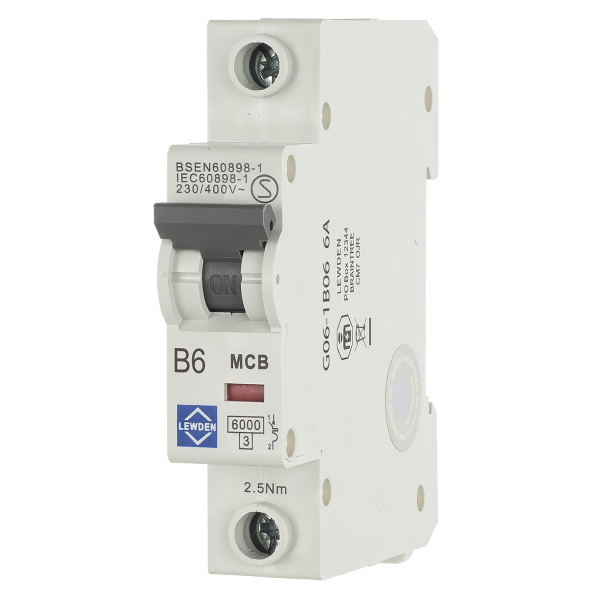

Lewden G06-1B06 1 Module Single Pole B Curve/Type B Miniature Circuit Breaker MCB 6A 6kA
G06-1B06
1 Module Single Pole B Curve Type B MCB – 6A, 6kA for Reliable Circuit Protection
This compact miniature circuit breaker (MCB) provides essential overcurrent protection for electrical installations. Designed with a B curve tripping characteristic, it is ideal for residential and commercial applications, ensuring safety and compliance with electrical standards.
- Single Pole Design: Space-efficient 1-module MCB for easy installation in consumer units and distribution boards.
- B Curve Tripping Characteristic: Suitable for general applications, offering protection against short circuits and moderate inrush currents.
- 6A Rated Current: Designed for circuits requiring precise overcurrent protection.
- 6kA Breaking Capacity: Ensures durability and reliability under fault conditions.
- Quick & Secure Installation: DIN rail mounting for fast and hassle-free setup.
Technical Specification
- Configuration: Single Pole (1P)
- Tripping Curve: B Curve
- Rated Current: 6A
- Breaking Capacity: 6kA
- Mounting: DIN Rail
- Standards Compliance: IEC/EN 60898-1
✅ Enhance circuit protection with this high-quality MCB for safe and reliable installations!
| Ean Code | 5026992048153 |
| Trip Type | B Curve |
| Short Circuit Rating | 6kA |
| Cable Capacity | 25 mm2 |
| Product | MCB |
| Type | Single Pole |
| Voltage | 230 V |
| Unit Weight | 0.092 kg |
| Pole Configuration | Single Pole (1P) |
| Mounting | DIN Rail |
| Width | 18 mm |
| Depth | 75.5 mm |
| Current Rating | 6A |
| Standards | BS EB 60898 |
| Ce Approved | Y |
| Number Of Poles | Single Pole (1P) |
| Height | 81.5 mm |
| Number Of Modules | 1 |
