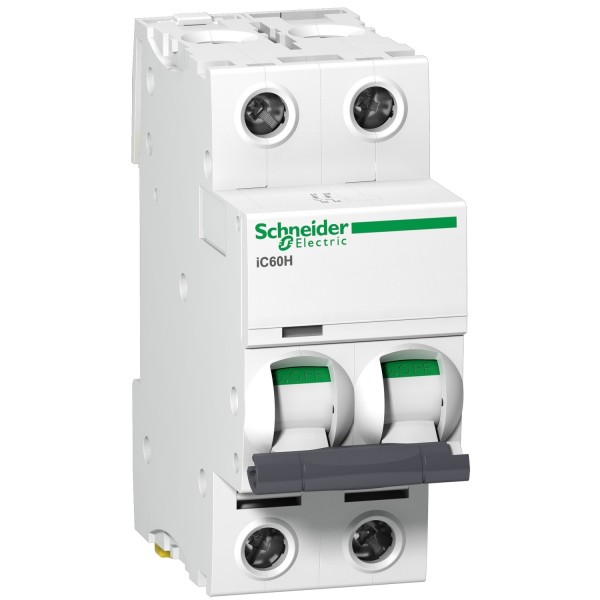

Schneider A9F54206 Acti9 iC60H 2P Type AC/DC Curve C 6A MCB

Schneider A9F54206 Acti9 iC60H 2P Type AC/DC Curve C 6A MCB

A9F54206

Est 3-4 day delivery (Subject to availability)
£62.54 inc Vat
£52.12 ex Vat
Free delivery for orders over £100 ex VAT

Acti9 iC60H 2P 6A C Miniature Circuit Breaker

The Acti9 iC60H 2P 6A Miniature Circuit Breaker (MCB) is a high-performance protection device designed for industrial and residential electrical installations. It offers robust protection against short circuits and overload currents, featuring VisiTrip and VisiSafe indicators for enhanced safety and ease of maintenance. With a durable design and fast-closing mechanism, this MCB ensures reliability in demanding environments.

  • Multi-Standard Compliance: Conforms to EN/IEC 60898-1 (residential) and EN/IEC 60947-2 (industrial) standards.
  • VisiTrip Indicator: Enables quick fault detection, reducing downtime.
  • VisiSafe Green Strip: Guarantees physical contact separation for safe maintenance.
  • Fast-Closing Mechanism: Ensures independent manual operation for increased durability.
  • High Durability:
    • Electrical Endurance: Up to 10,000 cycles.
    • Mechanical Endurance: Up to 20,000 cycles.
  • Superior Circuit Protection: Limitation Class 3 (per EN/IEC 60898-1) for enhanced safety.
  • DIN Rail Mountable: Simple and secure installation.

Technical Specifications

  • Poles: 2P (Double-pole).
  • Rated Current: 6A.
  • Tripping Curve: C curve.
  • Breaking Capacity:
    • 70kA at 220-240VAC (EN/IEC 60947-2).
    • 10kA at 415VAC (EN/IEC 60898-1).
  • Insulation Voltage (Ui): 500VAC.
  • Mounting: DIN rail installation.
  • Width: 4 pitches of 9mm.
  • Dimensions: 36mm (W) x 85mm (H) x 78.5mm (D).
  • Weight: 0.25kg.
  • Protection Rating: IP20 (as per IEC/EN 60529).
  • Operating Temperature: -35°C to 70°C.
  • Storage Temperature: -40°C to 85°C.

✅ Engineered for maximum safety and efficiency, the Acti9 iC60H 2P 6A MCB is the ideal choice for protecting three-phase electrical installations.

Description

This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 2P circuit breaker with 2 protected poles, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 30kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 78.5mm. The weight is 0.25kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

Technical Information
Range Schneider Acti 9
Product MCB
Type Double Pole
Current Rating 6A
Downloads

Data Sheet

DOWNLOAD
