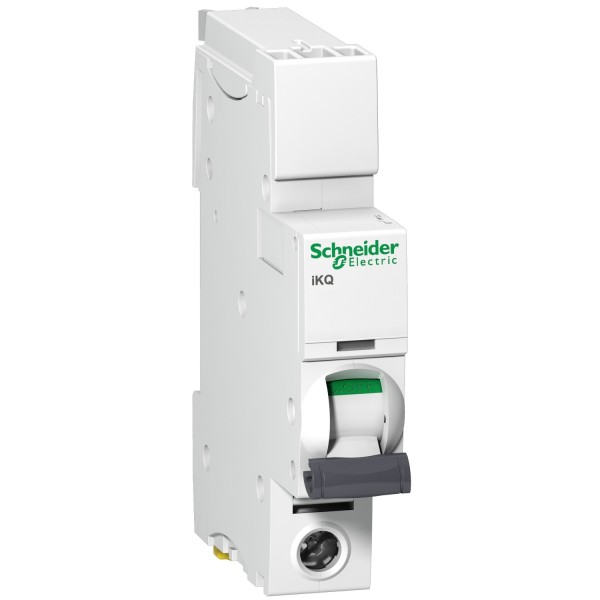

Schneider SE10B132 iKQ 1P Type AC Curve B 32A MCB

Acti9 iKQ 1P 32A B Miniature Circuit Breaker

The Acti9 iKQ 1P 32A Miniature Circuit Breaker is a high-performance solution for protecting electrical circuits against short circuits and overloads. Designed for durability, it features a trip-free mechanism, ensuring reliable operation even when the toggle is locked. With a modular DIN rail design, it is easy to install and integrates seamlessly into various electrical systems.

• Trip-Free Mechanism: Operates even when the toggle is locked on.
• Lockable Toggle: Can be locked in the ON or OFF position for added security.
• Positive Contact Indication: Ensures clear ON/OFF status.
• High Durability:
  • Electrical Endurance: Up to 10,000 cycles.
  • Mechanical Endurance: Up to 20,000 cycles.
• Modular Design: Easily mounts on DIN rail for quick installation.
• Enhanced Safety: Complies with IEC 60898-1 for circuit protection.

Technical Specifications

• Poles: 1P (single-pole).
• Rated Current: 32A.
• Tripping Curve: B curve.
• Operational Voltage (Ue): 240VAC.
• Insulation Voltage (Ui): 440VAC.
• Impulse Withstand Voltage (Uimp): 4kV.
• Operating Frequency: 50Hz / 60Hz.
• Mounting: DIN rail installation.
• Dimensions: 18mm (W) x 85mm (H) x 78.5mm (D).
• Weight: 0.121kg.
• Protection Rating: IP20 (standard) / IP40 (in enclosure) as per IEC 60529.

✅ Ensure superior circuit protection with the Acti9 iKQ, designed for reliability, safety, and long-lasting performance.
