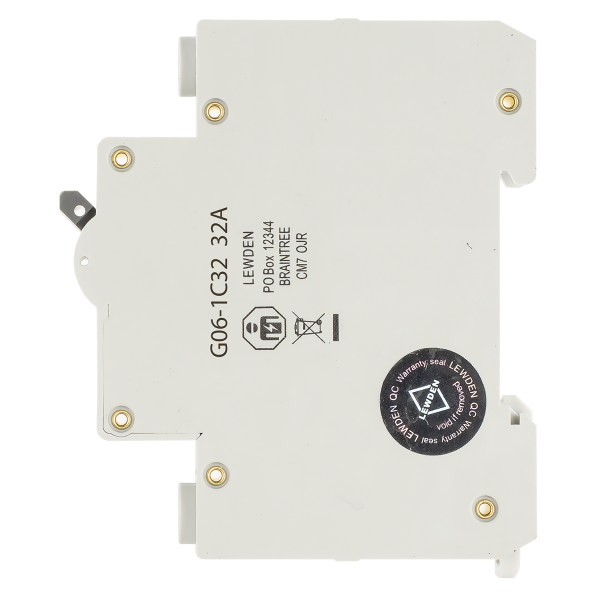

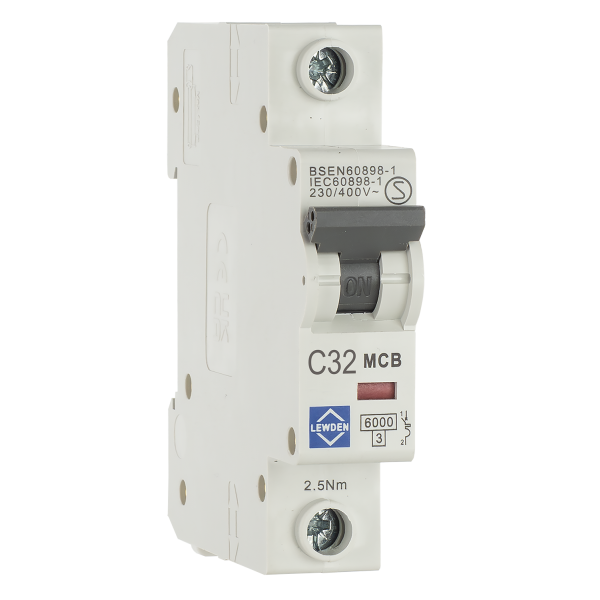

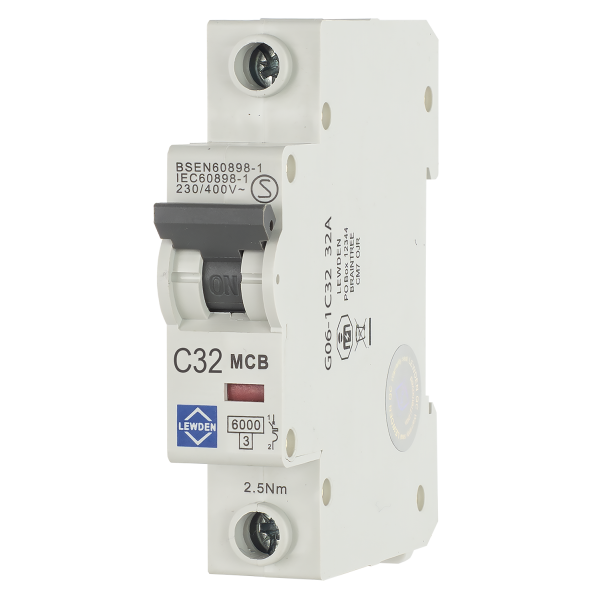

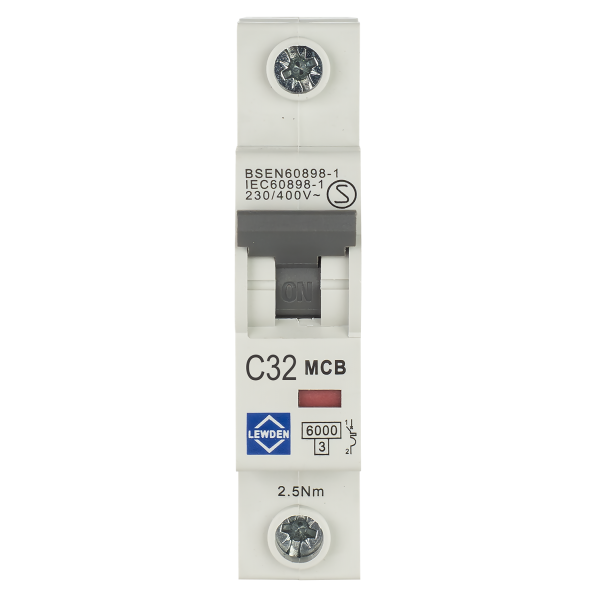

Lewden G06-1C32 1 Module Single Pole C Curve/Type C Miniature Circuit Breaker MCB 32A 6kA
G06-1C32
1 Module Single Pole C Curve Type C MCB – 32A, 6kA for Reliable Circuit Protection
This compact miniature circuit breaker (MCB) provides essential overcurrent protection for electrical installations. With a C curve tripping characteristic and 6kA breaking capacity, it is ideal for circuits with moderate to high inrush currents, such as motor-driven and inductive loads, ensuring enhanced safety and compliance.
- Single Pole Design: Space-efficient 1-module MCB for easy integration into consumer units and distribution boards.
- C Curve Tripping Characteristic: Suitable for circuits with higher inrush currents, such as commercial and industrial applications.
- 32A Rated Current: Provides effective protection for low-power circuits against overloads and short circuits.
- 6kA Breaking Capacity: Ensures reliable fault protection for enhanced safety.
- Quick & Secure Installation: DIN rail mounting for fast and hassle-free setup.
Technical Specification
- Configuration: Single Pole (1P)
- Tripping Curve: C Curve
- Rated Current: 32A
- Breaking Capacity: 6kA
- Mounting: DIN Rail
- Standards Compliance: IEC/EN 60898-1
✅ Upgrade your circuit protection with this high-performance MCB for enhanced safety and reliability!
| Trip Type | C Curve |
| Short Circuit Rating | 6kA |
| Product | MCB |
| Type | Single Pole |
| Current Rating | 32A |
| Number Of Poles | Single Pole (1P) |
