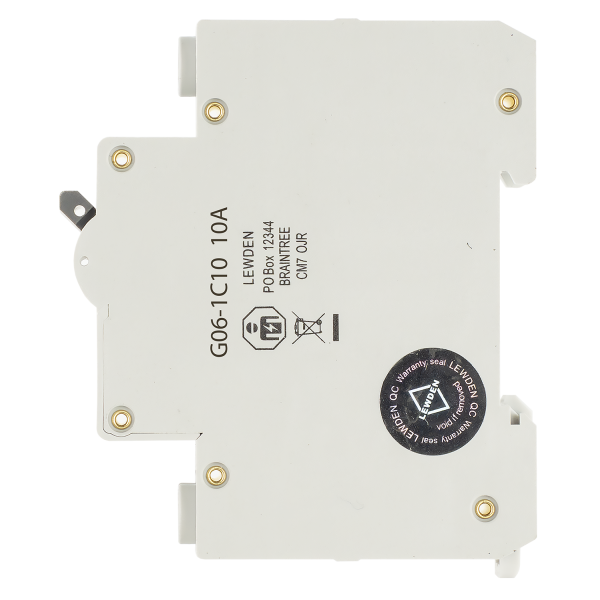

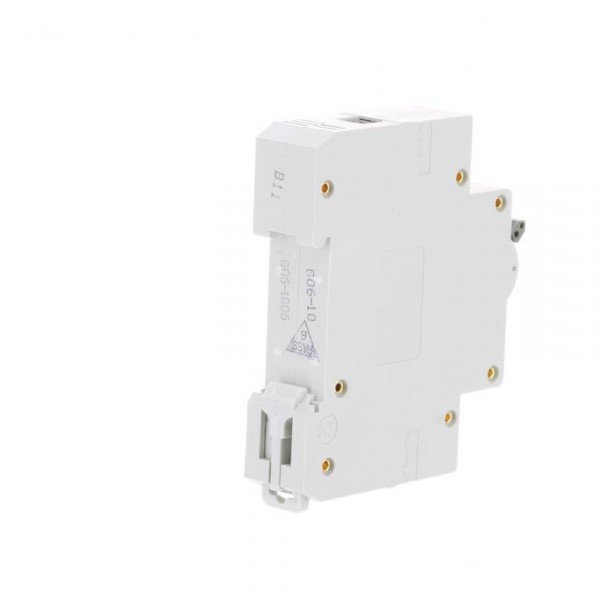

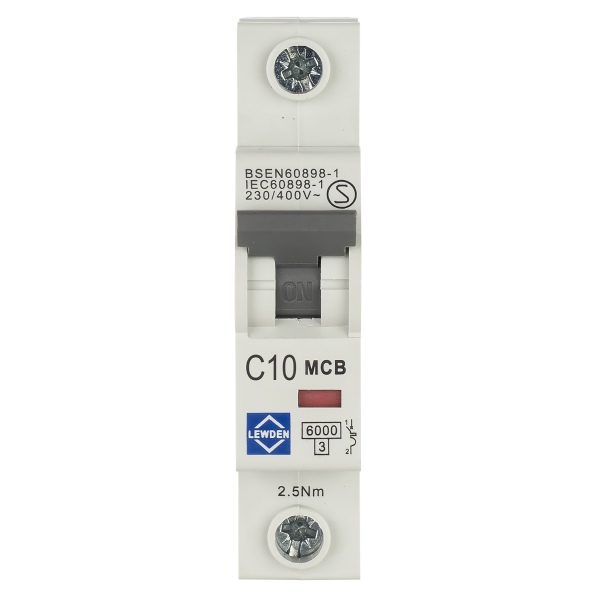

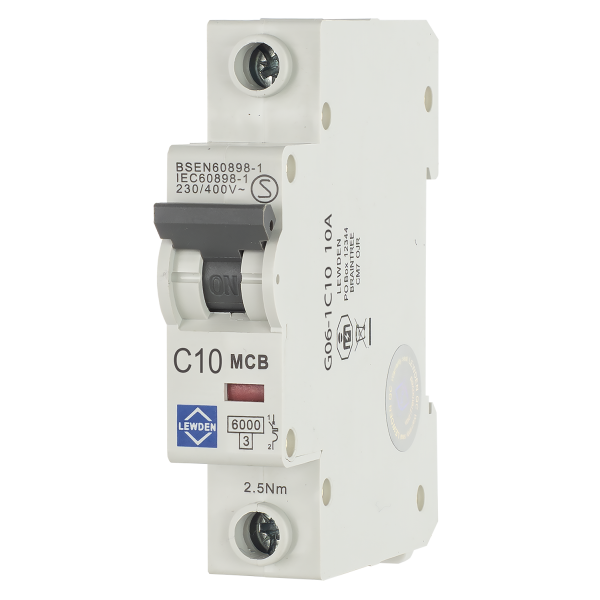

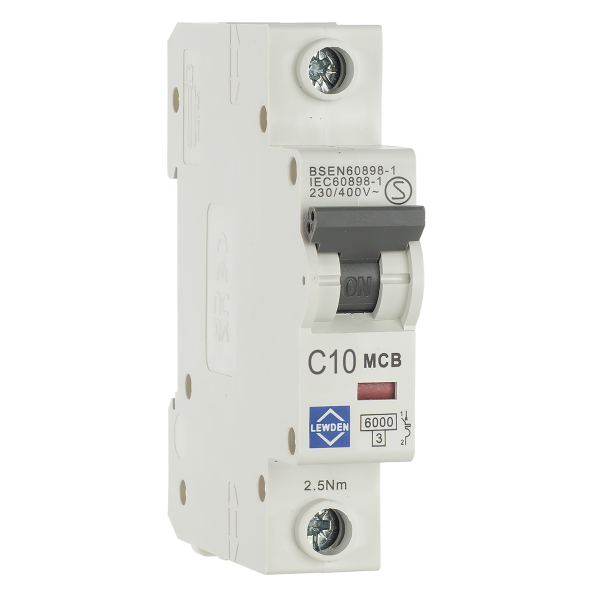

Lewden G06-1C10 1 Module Single Pole C Curve/Type C Miniature Circuit Breaker MCB 10A 6kA

1 Module Single Pole C Curve Type C MCB – 10A, 6kA for Reliable Circuit Protection

This compact miniature circuit breaker (MCB) provides essential overcurrent protection for electrical installations. With a C curve tripping characteristic and 6kA breaking capacity, it is ideal for circuits with moderate to high inrush currents, such as motor-driven and inductive loads, ensuring enhanced safety and compliance.

• Single Pole Design: Space-efficient 1-module MCB for easy integration into consumer units and distribution boards.
• C Curve Tripping Characteristic: Suitable for circuits with higher inrush currents, such as commercial and industrial applications.
• 10A Rated Current: Provides effective protection for low-power circuits against overloads and short circuits.
• 6kA Breaking Capacity: Ensures reliable fault protection for enhanced safety.
• Quick & Secure Installation: DIN rail mounting for fast and hassle-free setup.

Technical Specification

• Configuration: Single Pole (1P)
• Tripping Curve: C Curve
• Rated Current: 10A
• Breaking Capacity: 6kA
• Mounting: DIN Rail
• Standards Compliance: IEC/EN 60898-1

✅ Upgrade your circuit protection with this high-performance MCB for enhanced safety and reliability!
