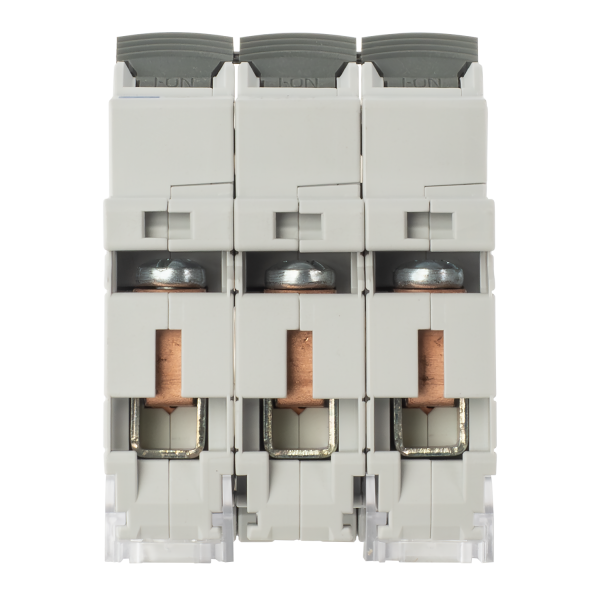

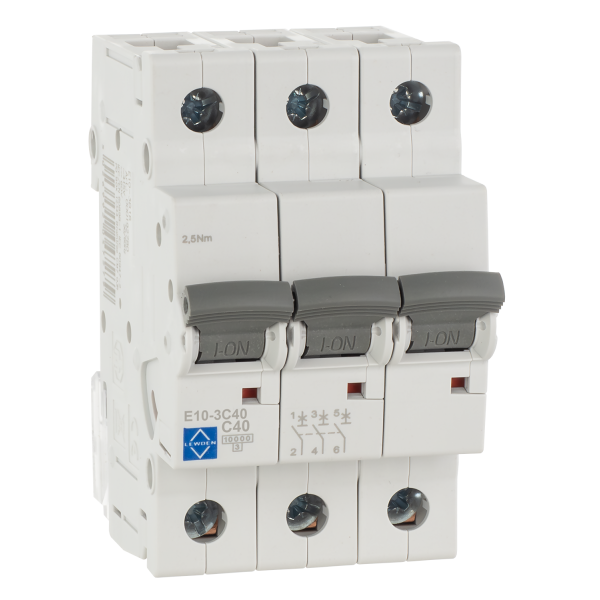

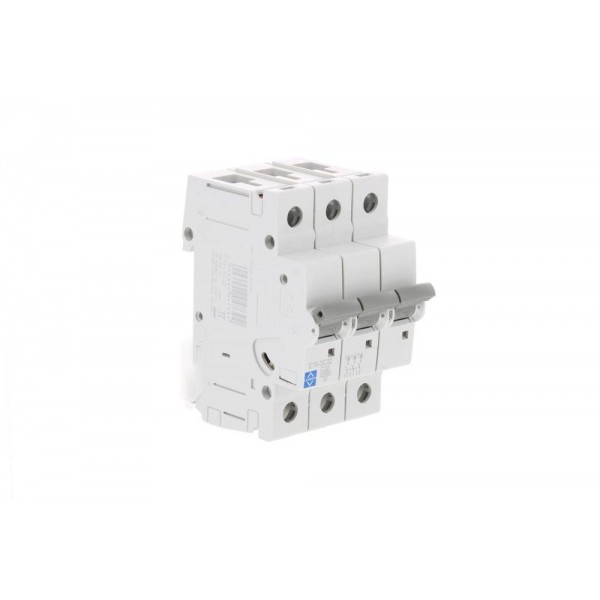

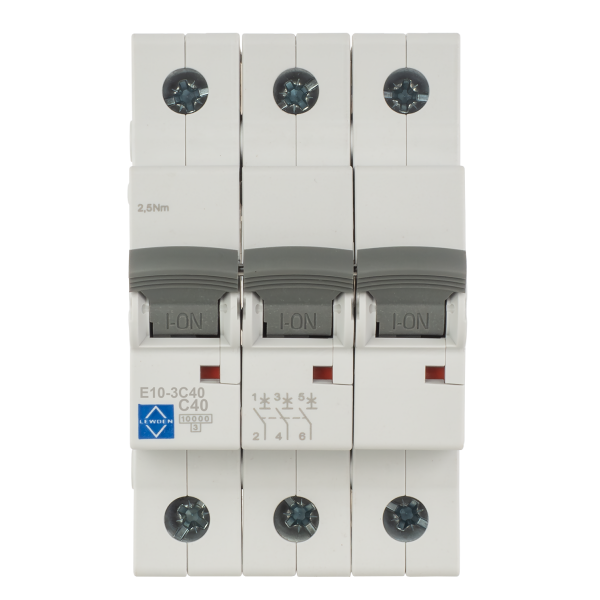

Lewden E10-3C40 3 Module Triple Pole C Curve/Type C Miniature Circuit Breaker MCB 40A 10kA
E10-3C40
3 Module Triple Pole C Curve Type C MCB – 40A, 10kA for Reliable Three-Phase Circuit Protection
This high-performance triple-pole miniature circuit breaker (MCB) provides essential overcurrent protection for three-phase electrical systems. With a C curve tripping characteristic and 10kA breaking capacity, it is ideal for circuits with moderate to high inrush currents, such as motor-driven and inductive loads, ensuring enhanced safety and compliance.
- Triple Pole Design: Protects all three phases in a compact 3-module configuration for balanced circuit protection.
- C Curve Tripping Characteristic: Designed for circuits with higher inrush currents, such as commercial and industrial applications.
- 40A Rated Current: Provides effective protection for three-phase circuits against overloads and short circuits.
- 10kA Breaking Capacity: Ensures high fault protection for increased reliability.
- Quick & Secure Installation: DIN rail mounting for easy integration into distribution boards.
Technical Specification
- Configuration: Triple Pole (3P)
- Tripping Curve: C Curve
- Rated Current: 40A
- Breaking Capacity: 10kA
- Mounting: DIN Rail
- Standards Compliance: IEC/EN 60898-1
✅ Enhance your three-phase electrical system with this high-performance MCB for superior circuit protection and reliability!
| Trip Type | C Curve |
| Short Circuit Rating | 10kA |
| Product | MCB |
| Type | Triple Pole |
| Current Rating | 40A |
| Number Of Poles | Triple Pole (3P) |
