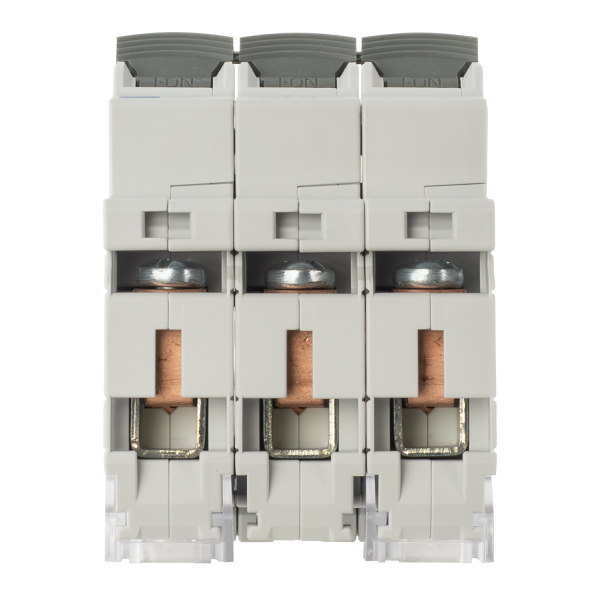

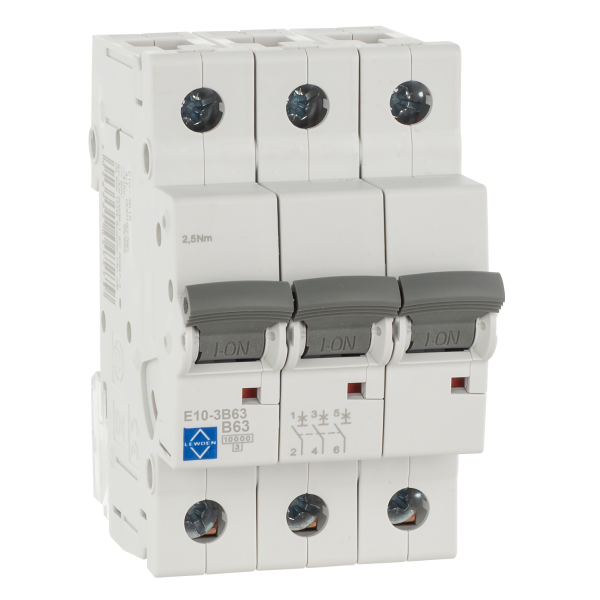

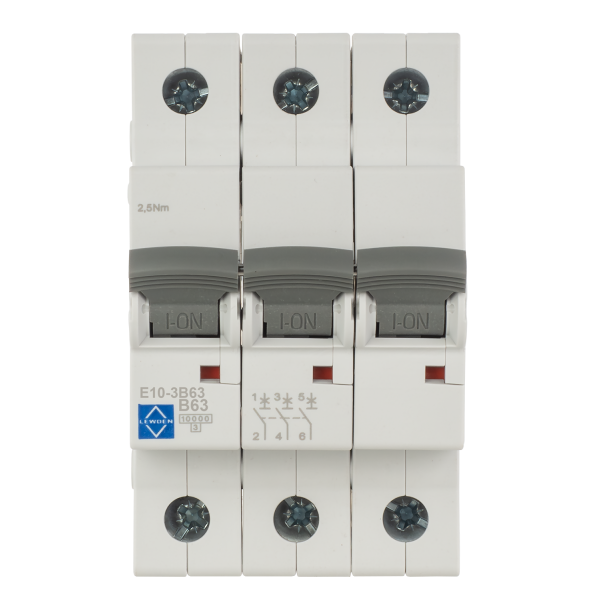

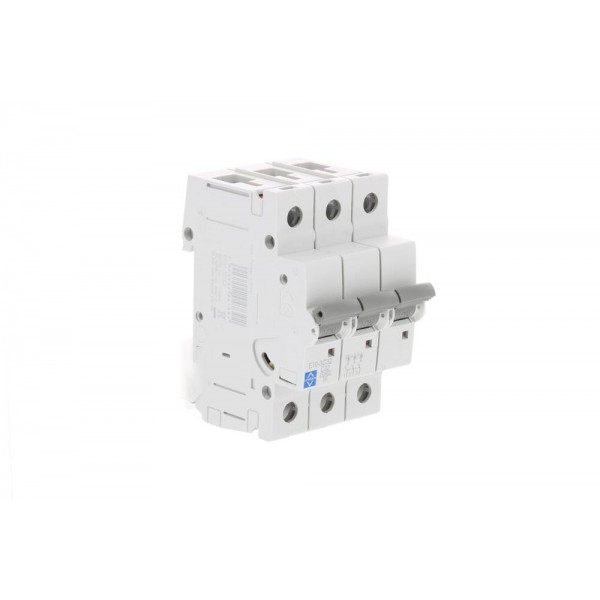

Lewden E10-3B63 3 Module Triple Pole B Curve/Type B Miniature Circuit Breaker MCB 63A 10kA

3 Module Triple Pole B Curve Type B MCB – 63A, 10kA for Reliable Three-Phase Circuit Protection

This high-performance triple-pole miniature circuit breaker (MCB) provides essential overcurrent protection for three-phase electrical systems. Featuring a B curve tripping characteristic and 10kA breaking capacity, it is ideal for residential, commercial, and light industrial applications, ensuring enhanced safety and compliance.

• Triple Pole Design: Protects all three phases in a compact 3-module configuration for balanced circuit protection.
• B Curve Tripping Characteristic: Suitable for general applications, offering protection against short circuits and moderate inrush currents.
• 63A Rated Current: Designed for three-phase circuits requiring precise overcurrent protection.
• 10kA Breaking Capacity: Provides robust protection against high fault currents for increased reliability.
• Quick & Secure Installation: DIN rail mounting for easy integration into distribution boards.

Technical Specification

• Configuration: Triple Pole (3P)
• Tripping Curve: B Curve
• Rated Current: 63A
• Breaking Capacity: 10kA
• Mounting: DIN Rail
• Standards Compliance: IEC/EN 60898-1

✅ Ensure superior protection for three-phase circuits with this durable and high-performance MCB!
