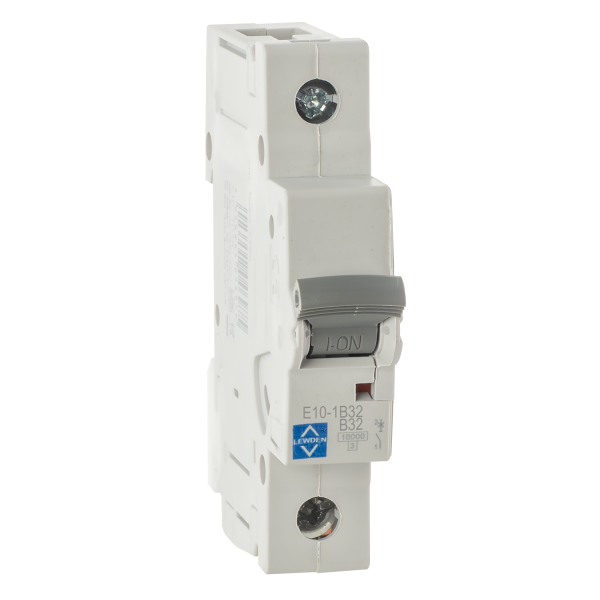

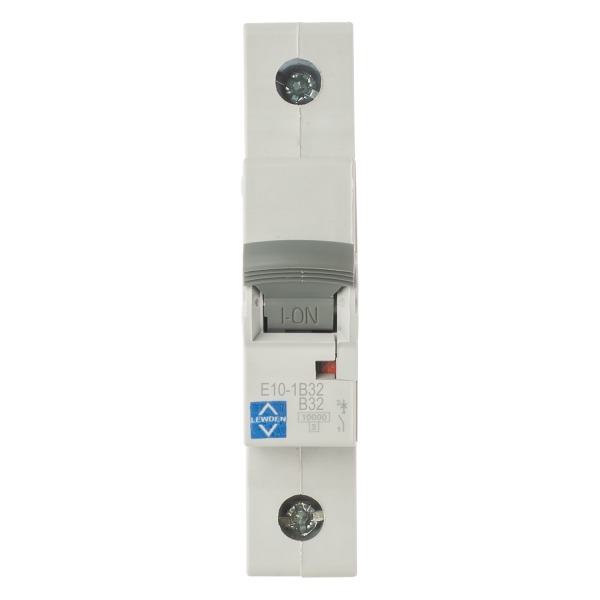

Lewden E10-1B32 1 Module Single Pole B Curve/Type B Miniature Circuit Breaker MCB 32A 10kA
E10-1B32
1 Module Single Pole B Curve Type B MCB – 32A, 10kA for High-Reliability Circuit Protection
This compact miniature circuit breaker (MCB) provides essential overcurrent protection for electrical installations. With a B curve tripping characteristic and 10kA breaking capacity, it is ideal for residential, commercial, and light industrial applications, ensuring safety and compliance.
- Single Pole Design: Space-efficient 1-module MCB for easy installation in consumer units and distribution boards.
- B Curve Tripping Characteristic: Designed for general applications, protecting against short circuits and moderate inrush currents.
- 32A Rated Current: Ideal for low-power circuits requiring precise protection.
- 10kA Breaking Capacity: Ensures robust protection against high fault currents for added reliability.
- Quick & Secure Installation: DIN rail mounting for fast and hassle-free setup.
Technical Specification
- Configuration: Single Pole (1P)
- Tripping Curve: B Curve
- Rated Current: 32A
- Breaking Capacity: 10kA
- Mounting: DIN Rail
- Standards Compliance: IEC/EN 60898-1
✅ Ensure reliable circuit protection with this high-quality MCB, designed for durability and performance!
| Trip Type | B Curve |
| Short Circuit Rating | 10kA |
| Product | MCB |
| Type | Single Pole |
| Current Rating | 32A |
| Number Of Poles | Single Pole (1P) |
