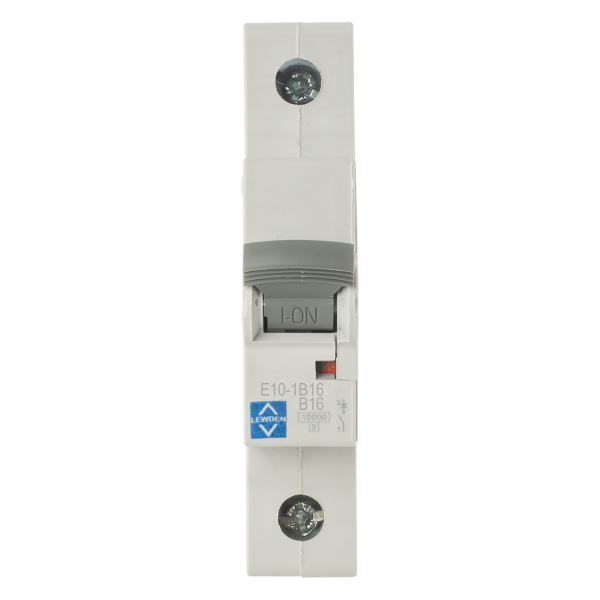

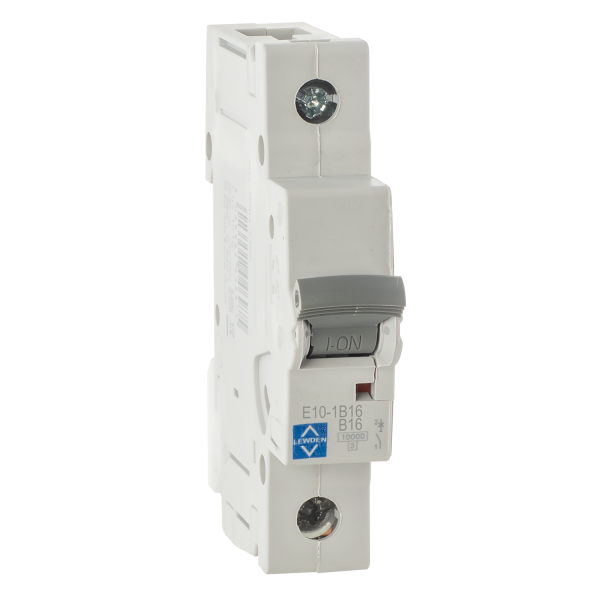

Lewden E10-1B16 1 Module Single Pole B Curve/Type B Miniature Circuit Breaker MCB 16A 10kA

1 Module Single Pole B Curve Type B MCB – 16A, 10kA for High-Reliability Circuit Protection

This compact miniature circuit breaker (MCB) provides essential overcurrent protection for electrical installations. With a B curve tripping characteristic and 10kA breaking capacity, it is ideal for residential, commercial, and light industrial applications, ensuring safety and compliance.

• Single Pole Design: Space-efficient 1-module MCB for easy installation in consumer units and distribution boards.
• B Curve Tripping Characteristic: Designed for general applications, protecting against short circuits and moderate inrush currents.
• 16A Rated Current: Ideal for low-power circuits requiring precise protection.
• 10kA Breaking Capacity: Ensures robust protection against high fault currents for added reliability.
• Quick & Secure Installation: DIN rail mounting for fast and hassle-free setup.

Technical Specification

• Configuration: Single Pole (1P)
• Tripping Curve: B Curve
• Rated Current: 16A
• Breaking Capacity: 10kA
• Mounting: DIN Rail
• Standards Compliance: IEC/EN 60898-1

✅ Ensure reliable circuit protection with this high-quality MCB, designed for durability and performance!
