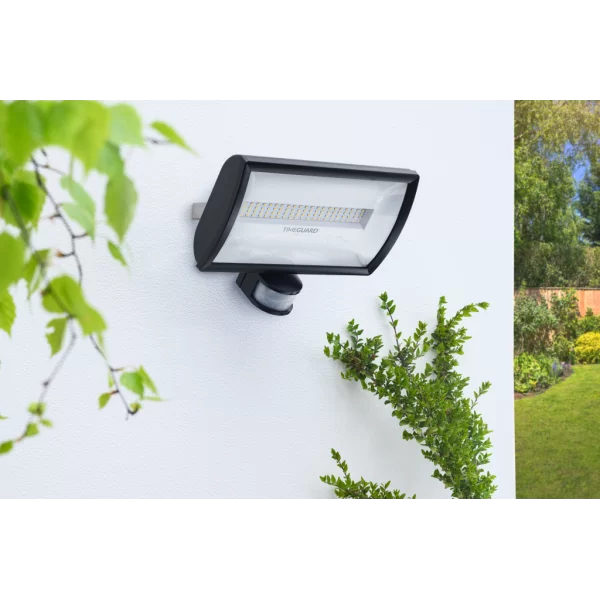

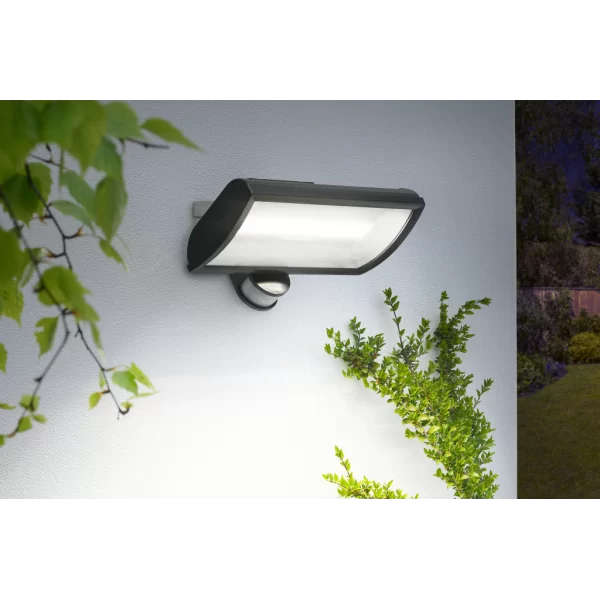

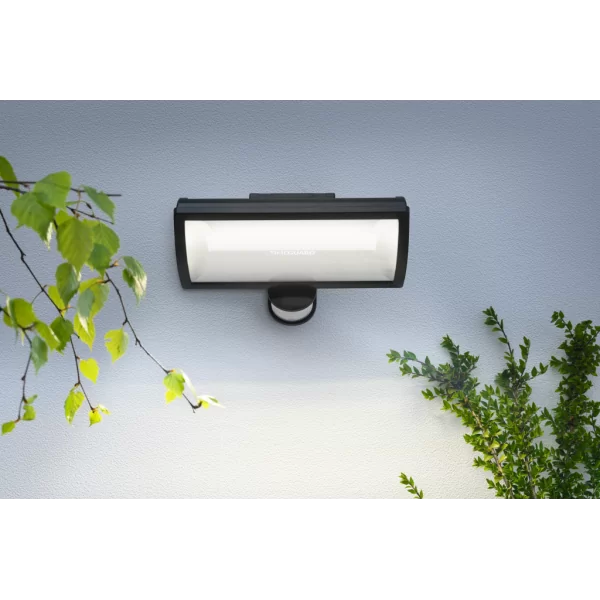

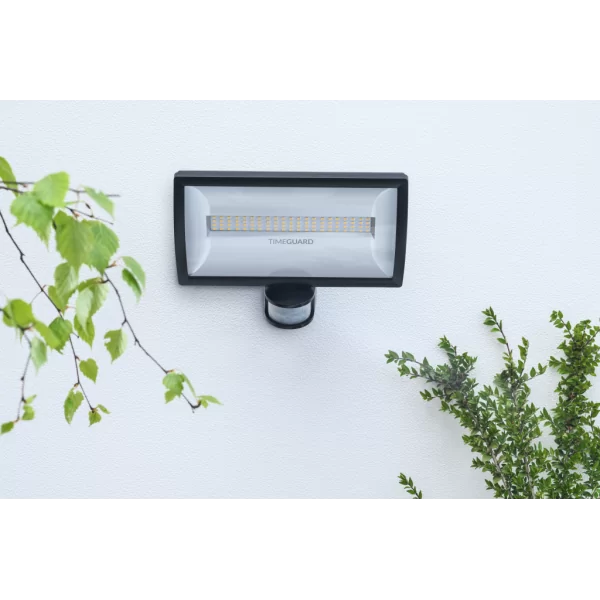

Timeguard LEDX30PIRBN Night Eye Black Wide Beam LED Security Floodlight With 180° PIR Detector, Instant ON Light & Adjustable Quick Fit Bracket IP55 30W 3000 Lumens
LEDX30PIRBN
Timeguard LEDX30PIRBN Night Eye 30W LED PIR Floodlight – Black, Wide Beam with Quick Fit Bracket, 3000lm Output, IP55 Rated
The Timeguard LEDX30PIRBN Night Eye is a powerful 30W LED floodlight with integrated 180° PIR sensor, delivering reliable motion-activated lighting for outdoor security. Built with rust-resistant marine-grade materials and designed for easy installation, it's ideal for both domestic and commercial environments.
- Built-In PIR Detection: 180° motion sensor with 12m range, adjustable light-on time (5 seconds to 10 minutes), and manual override mode for flexible control.
- High Lumen Output: 30W LED delivers 3000 lumens of cool white 4000K light, ideal for wide-area security illumination.
- Marine-Grade Durability: Features a 316 stainless steel bracket, marine-grade aluminium heat sink, and polycarbonate body—built for coastal or exposed installations.
- Advanced Wiring Options: Slave terminal included for controlling external lighting loads, plus parallel switching for up to 4 linked units.
- Quick Fit Mounting: Supplied with an installer-friendly bracket for fast and secure wall or soffit installation.
Technical Specification
- Operating Voltage: 230V AC
- Maximum Load: 30W LED
- Lumens Output: 3000lm
- Detection Range: 12 metres, 180° angle
- IP Rating: IP55
✅ Install the Timeguard LEDX30PIRBN for high-power, corrosion-resistant PIR floodlighting—engineered for long life and smart security lighting control!
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Range | Timeguard Night Eye |
| Product | LED Floodlight |
| Photocell Included | N |
| Type | Floodlight |
| Microwave Sensor Included | N |
| Lamp Type | LED Fixed |
| Self-contained | N |
| Wattage | 30 W |
| Ingress Protection | IP55 |
| Colour | Black |
| Beam Angle | 110 Degrees |
| Colour Temperature | 4000 K |
| Light Output | 3000 Lm |
| Voltage | 230 V |
| Energy Efficiency Class | E |
| Warranty | 3 Years |
| Unit Weight | 0.837 kg |
| Width | 244 mm |
| Depth | 112 mm |
| Ce Approved | Y |
| Mounting Type | Surface |
| Height | 187 mm |
| Mounting Position | Surface |
| Fire Rated | N |
| Pir Included | Y |
| Cover Included | Y |
| Led Driver Included? | Y |
| Emergency | N |
| Housing Material | Polycarbonate/Stainless Steel |
| Face Shape | Rectangular |
| Corrosion Resistant | N |
| Adjustability | Adjustable |
| Vandal Resistant | N |
| Ballast/starter Included | N |
| Lamp(s) Included? | Y |
| Housing Colour | Black |
