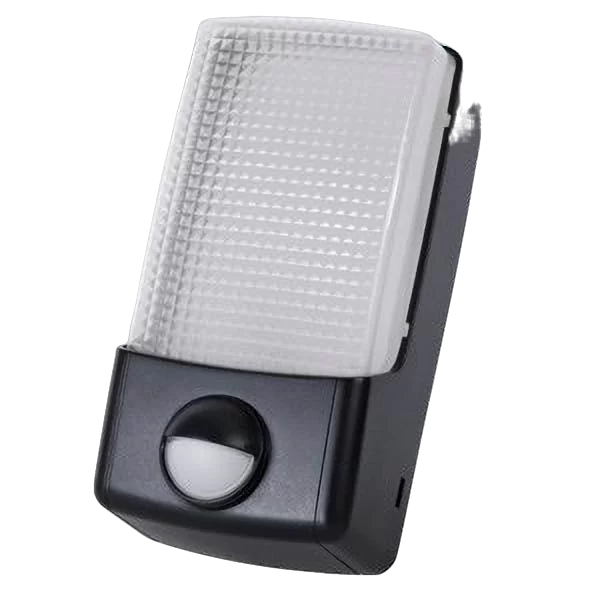

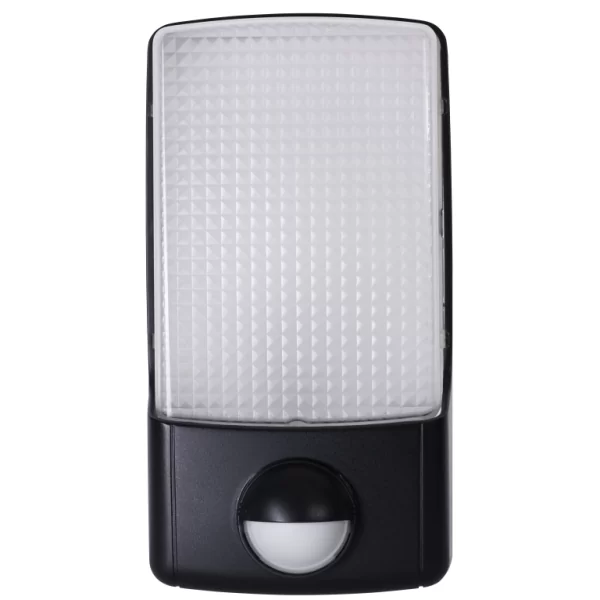

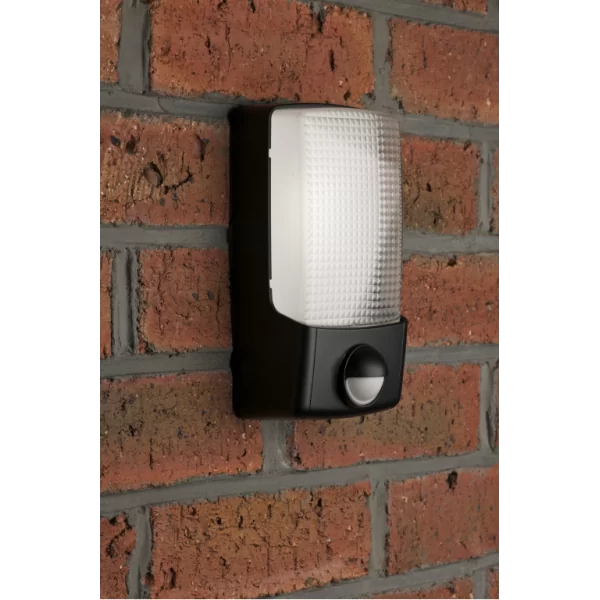

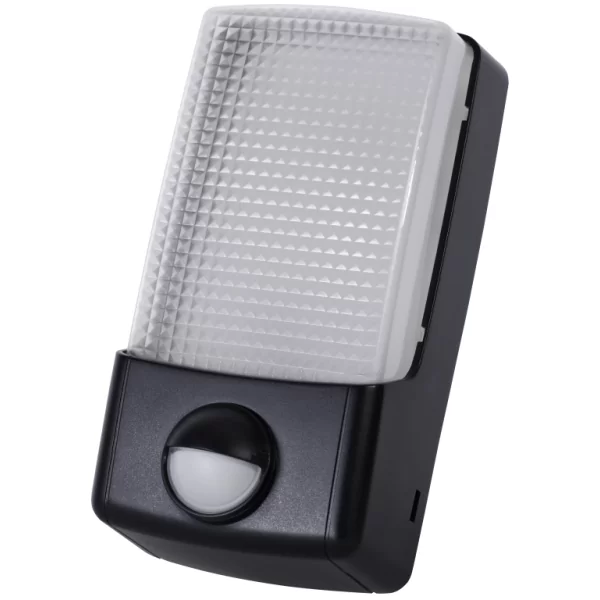

Timeguard LED88PIR Black Polycarbonate LED Energy Saving Bulkhead Luminaire With 140° PIR & Prismatic Diffuser IP55 5W 210 Lumens 240V H: 205mm x W: 108mm x D: 64mm

Timeguard LED88PIR LED Bulkhead with PIR Sensor – 5W, IP55 Rated with Adjustable Timer and LUX Control, Ideal for Indoor & Outdoor Use

The Timeguard LED88PIR combines energy-efficient LED lighting with a 140° PIR sensor for motion-activated illumination. Housed in a durable IP55-rated enclosure, this compact bulkhead is perfect for enhancing security and efficiency in both internal and external installations.

• Energy Saving PIR Lighting: 5W LED delivers light equivalent to 70W incandescent with only 10% of the running cost.
• Integrated PIR Sensor: 140° detection angle with up to 7m range and adjustable light-on time from 5 seconds to 10 minutes.
• Light Level Control: Adjustable 2 to 200 LUX settings with optional dusk-to-dawn and test modes for precise operation.
• Rugged & Compact Build: Weatherproof IP55 polycarbonate housing with prismatic diffuser and easy installation design.
• Cool White Output: Bright 5000K–5600K colour temperature ideal for security and general illumination.

Technical Specification

• Operating Voltage: 230V AC
• Lamp Type: 5W LED
• Colour Temperature: 5000K–5600K
• Detection Range: 7m max, 140° angle (adjustable pan)
• IP Rating: IP55

✅ Install the Timeguard LED88PIR for intelligent, energy-saving lighting with motion detection—ideal for entrances, pathways, and communal spaces!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
