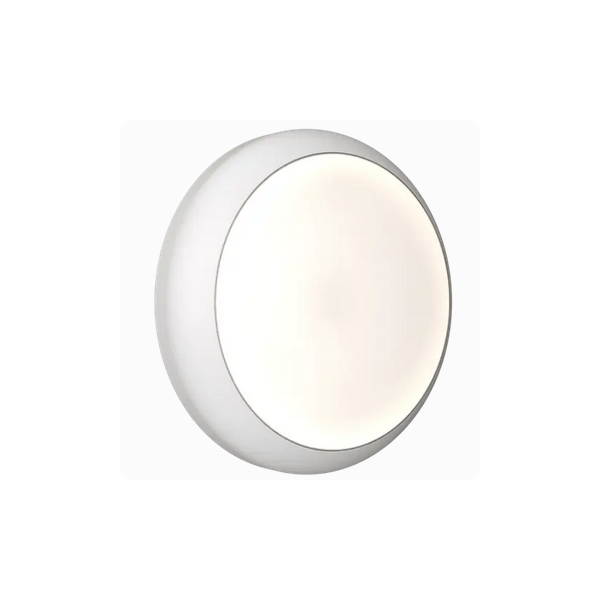

Ansell Lighting ADIS1/2/SM3 Disco Evo 2 XPRESS White All Polycarbonate Round Colour Selectable LED Self-Test Emergency Bulkhead With Opal Diffuser & CCT LEDs IP65 4W-7W 230V
ADIS1/2/SM3
Ansell Disco EVO 1 XPRESS Self-Test Emergency LED Bulkhead – Multi-Wattage, CCT Selectable Bulkhead with 3 Hour Emergency Backup
The Ansell Disco EVO 1 XPRESS Self-Test Emergency LED Bulkhead combines flexible lighting performance with reliable emergency functionality in a compact, modern design. Featuring selectable wattage and colour temperature settings, efficacy of up to 145lm/W and a pre-installed 3-hour XPRESS emergency module, this versatile bulkhead is ideal for residential, commercial, industrial and ancillary applications.
- Selectable Wattage & CCT: Adjustable power output from 4W to 7W with selectable 3000K, 4000K or 6500K colour temperatures for maximum installation flexibility.
- Integrated 3 Hour Emergency Backup: Supplied with a pre-installed XPRESS emergency module to provide reliable illumination during mains power failure.
- Selectable Self-Test Function: Choose between self-test and manual test operation to simplify maintenance and compliance requirements.
- High-Efficiency Performance: Delivers up to 145lm/W, helping to reduce energy consumption and operating costs.
- Quick & Easy Installation: Features a bezel-mounted gear tray, four 20mm conduit entry points and an integrated spirit level for faster, more accurate installation.
Technical Specification
- Power Consumption: Selectable 4W – 7W
- Colour Temperature: Selectable 3000K / 4000K / 6500K
- Emergency Duration: 3 Hours
- Efficiency: Up to 145lm/W
- Construction: Polycarbonate Body with Opal Diffuser and White Trim Ring
✅ Choose the Ansell Disco EVO 1 XPRESS Self-Test Emergency Bulkhead for energy-efficient lighting, dependable emergency operation and rapid installation across a wide range of commercial and residential applications.
(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
| Range | Ansell Disco Evo 2 |
| Product | LED Bulkhead |
| Type | CCT |
| Lamp Type | LED Fixed |
| Dimmable | N |
| Wattage | Multi-Wattage |
| Ingress Protection | IP65 |
| Diameter | 275 mm |
| Colour Temperature | CCT |
| Colour Rendering Index | 80 |
| Voltage | 230 V |
| Depth | 84 mm |
| Mounting Position | Ceiling/Wall |
| Emergency | Y |
| Bezel/trim Colour | White |
| Overall Diameter | 275 mm |
| Shape | Circular |
