Connexbox WBX-001-G Grey Multipurpose Electrical Junction Enclosure L: 108mm x W: 34mm x H:42mm

Connexbox® Classic Junction Box - Maintenance-Free, Wago® Compatible & Compact Design

The Connexbox® Classic is a purpose-built, maintenance-free junction box designed to simplify installations for electricians. Engineered for use with Wago® 222 and 773 connectors, it offers a faster, safer and more flexible solution, especially in confined spaces such as ceiling voids.

• Designed for Wago® Connectors: Fully compatible with 222 and 773 series connectors, allowing up to 24 terminations in one enclosure.

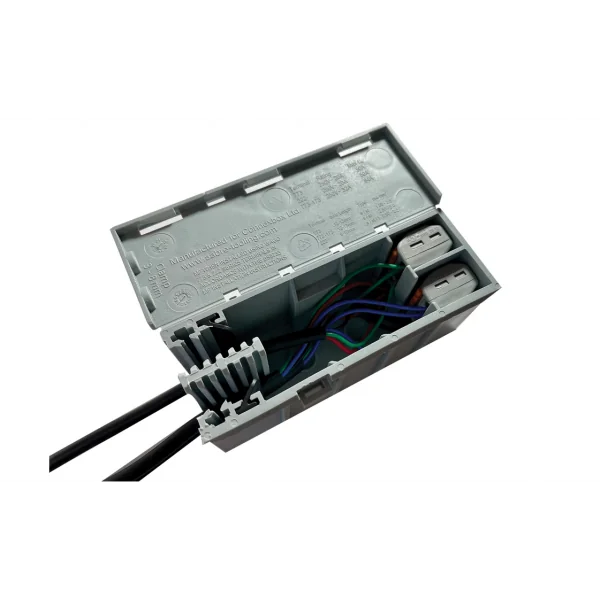

• Fast & Practical Installation: Cables can be terminated outside the box, reducing installation time and eliminating awkward working conditions.
• Compact & Versatile: Slim design fits through a 60mm spotlight cut-out, ideal for retrofit and downlight installations.
• Secure Cable Management: Adjustable clamps support twin & earth from 1.0–6.0mm², with robust grippers for flex up to 8mm diameter.
• Compliant & Reliable: Maintenance-free and compliant with BS 7671, BS EN 60670-22 and BS 5733 for safe, long-term performance.

Technical Specification

• Standards: BS 7671:2018, BS EN 60670-22, BS 5733 (Maintenance Free)
• IP Rating: IP2X
• Dimensions: 108 x 34 x 42mm
• Cable Capacity: Up to 6 cables (various sizes up to 6.0mm² T&E or 8mm flex)
• Rating: Up to 41A, 400V / 4kV

✅ Choose the Connexbox® Classic for a faster, safer and fully compliant junction box solution on every installation.
