Mennekes 5602506G DUO Interlocked Socket IP67 16A 5P 400V 6H
5602506G

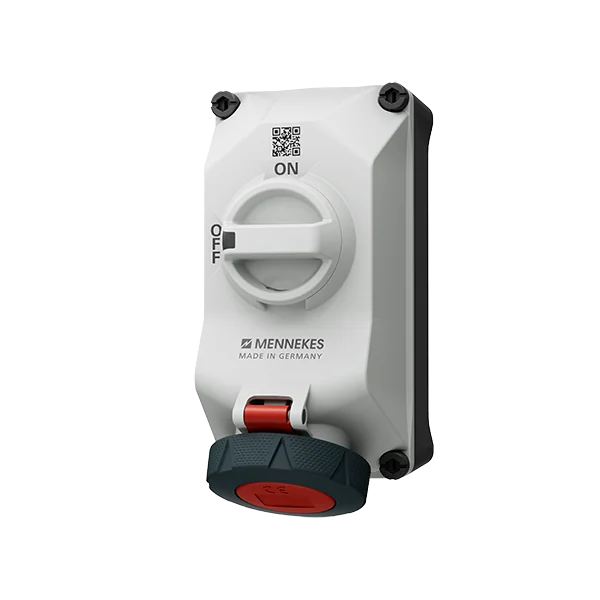

Mennekes 5602506G DUO Interlocked Socket – Wall-Mounted 5P 16A 400V, IP67 Rated for Secure Industrial Power Connections
The Mennekes 5602506G DUO Interlocked Socket is a high-quality, wall-mounted solution designed for safe and reliable three-phase power distribution. With a 5-pole, 16A, 400V configuration and IP67-rated housing, it offers full protection against water and dust ingress, making it ideal for demanding industrial and outdoor environments.
- Built-In Mechanical Interlock: Prevents plug disconnection under load, enhancing safety and preventing equipment damage.
- IP67 Protection: Fully sealed against dust and water for use in wet or exposed environments.
- 5-Pole Configuration: Suitable for three-phase systems with neutral and earth (3P+N+E).
- Compact DUO Housing: Space-efficient design with top-mounted socket and integrated rotary isolator switch.
- Rotary On/Off Switch: Provides safe local power isolation at the socket point for controlled operation.
Technical Specification
- Poles: 5P (3P+N+E)
- Rated Current: 16A
- Voltage: 400V (6H clock position)
- IP Rating: IP67
- Mounting Type: Wall-mounted with interlocked switch
✅ Choose the Mennekes 5602506G DUO Interlocked Socket for safe, watertight, and dependable power connections in tough industrial environments.
Range | Mennekes DUO Interlocked |
Product | Socket |
Type | Switch Interlocked |
Ingress Protection | IP67 |
Colour | Red |
Voltage | 400 V |
Pole Configuration | 5 Pole |
Current Rating | 16 A |
