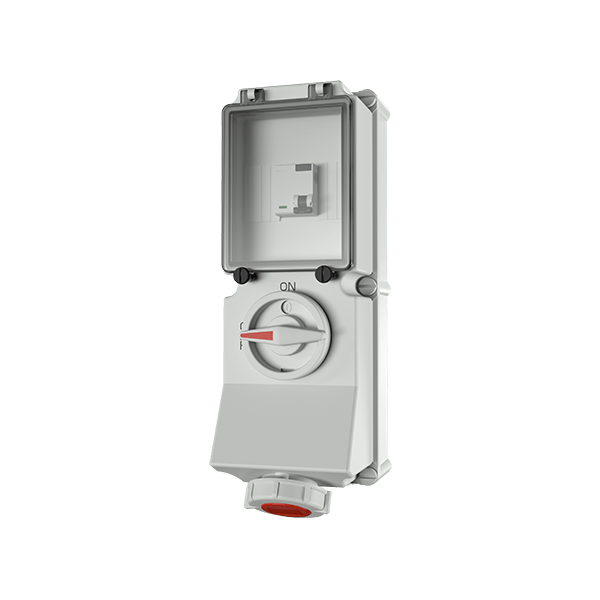

Mennekes 7246UK DUO Interlocked Socket with RCD IP67 16A 4P 400V 6h 30mA

DUO Interlocked Socket with RCD – IP67, 16A, 4P, 400V, 6h, 30mA for Safe, Low-Current Three-Phase Applications

This DUO interlocked socket offers safe, RCD-protected power for compact three-phase installations without a neutral. Featuring mechanical interlock, manual switching, and IP67 protection, it is built for secure, compliant use in harsh industrial and outdoor environments.

• Built-in 30mA RCD: Provides fast disconnection in case of earth leakage, enhancing safety for equipment and users.
• Mechanical DUO Interlock: Prevents power from being supplied unless the plug is fully inserted and locked into position.
• Switched Design: Integrated switch for manual power control, allowing easy operation and isolation.
• IP67 Protection: Dust-tight and resistant to temporary immersion, suitable for wet or rugged outdoor installations.
• 4-Pin Screw Terminals: Standard 3P+E configuration at 400V for balanced three-phase loads without neutral.

Technical Specification

• Mounting: Wall Mounted
• Current Rating: 16A
• Poles: 4P (3P+E)
• Voltage: 400V
• IP Rating: IP67
• RCD Rating: 30mA

✅ Install this 4P DUO interlocked socket with RCD for safe, compact, and durable three-phase connections without neutral!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
