Mennekes 5603306G DUO Interlocked Socket IP44 32A 3P 230V 6H

5603306G

1 in stock for next day delivery see cut off times
£193.22 inc Vat
£161.02 ex Vat
Free delivery for orders over £100 ex VAT

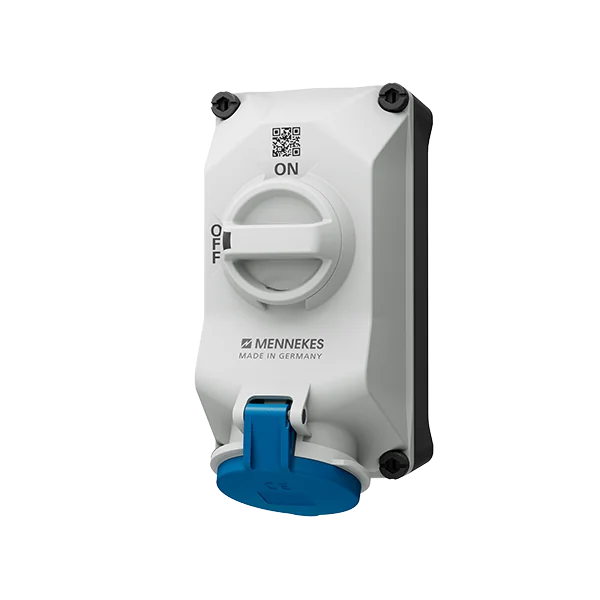

Mennekes 5603306G DUO Interlocked Socket – Wall-Mounted 3P 32A 230V, IP44 Rated for Safe and Durable Power Connections

The Mennekes 5603306G DUO Interlocked Socket is a robust, wall-mounted power outlet designed for secure and efficient electrical distribution. With a 3-pole, 32A, 230V setup and integrated interlock system, it provides safe and reliable operation in commercial and light industrial environments.

  • Mechanical Interlock: Prevents plug removal under load, reducing electrical hazards and ensuring operator safety.
  • IP44 Splash Protection: Suitable for dry indoor use or sheltered outdoor installations.
  • 3-Pole Configuration: Designed for single-phase 230V systems with earth connection.
  • DUO Housing Design: Compact enclosure with rotary isolator and top-mounted socket outlet for space efficiency.
  • Integrated Rotary Switch: Provides local power control and safe on/off switching at the socket point.
Technical Specification
  • Poles: 3P (2P+E)
  • Rated Current: 32A
  • Voltage: 230V (6H clock position)
  • IP Rating: IP44
  • Mounting Type: Wall-mounted with interlocked switch

✅ Choose the Mennekes 5603306G DUO Interlocked Socket for safe, high-capacity power access in demanding site and industrial applications.

Technical Information
Range Mennekes DUO Interlocked
Product Socket
Type Switch Interlocked
Ingress Protection IP44
Colour Blue
Voltage 230 V
Pole Configuration Triple Pole
Current Rating 32 A
