Mennekes 5601306G DUO Interlocked Wall Mounted Socket IP44 16A 3P 230V 6H

5601306G

Est 3-4 day delivery (Subject to availability)
£140.63 inc Vat
£117.20 ex Vat
Free delivery for orders over £100 ex VAT

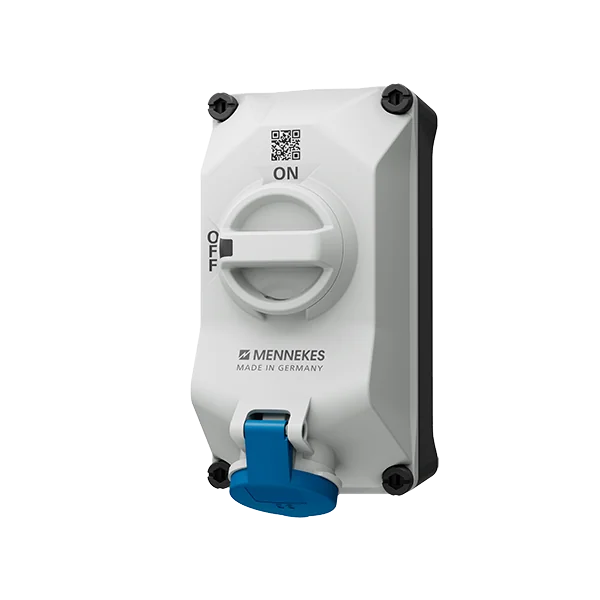

Mennekes 5601306G DUO Interlocked Socket – Wall-Mounted 3P 16A 230V, IP44 Rated for Safe and Controlled Power Supply

The Mennekes 5601306G DUO Interlocked Socket is a compact and dependable wall-mounted power outlet, ideal for commercial and light industrial applications. Featuring a 3-pole, 16A, 230V setup, this unit includes a mechanical interlock system and IP44-rated enclosure for safe, splash-proof operation.

  • Integrated Interlock Mechanism: Prevents disconnection under load for improved safety and compliance.
  • IP44 Splash Protection: Suitable for sheltered outdoor areas and dry indoor environments.
  • 3-Pole Configuration: Designed for single-phase 230V systems with protective earth.
  • DUO Housing Design: Space-efficient, wall-mountable unit with top-mounted socket and rotary isolator.
  • Rotary On/Off Switch: Built-in switching capability allows safe local control at the socket.
Technical Specification
  • Poles: 3P (2P+E)
  • Rated Current: 16A
  • Voltage: 230V (6H clock position)
  • IP Rating: IP44
  • Mounting Type: Wall-mounted with interlocked switch

✅ Rely on the Mennekes 5601306G DUO Interlocked Socket for safe, efficient, and space-saving power distribution in professional installations.

Technical Information
Range Mennekes DUO Interlocked
Product Socket
Type Switch Interlocked
Ingress Protection IP44
Colour Blue
Voltage 230 V
Pole Configuration Triple Pole
Current Rating 16 A
