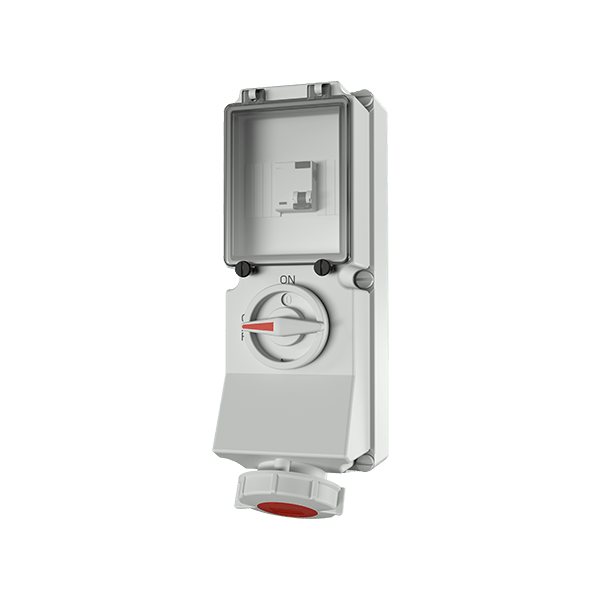

Mennekes 7249UK DUO Interlocked Socket with RCD IP67 32A 5P 400V 6h 30mA

DUO Interlocked Socket with RCD – IP67, 32A, 5P, 400V, 6h, 30mA for Safe, Weatherproof Three-Phase Power Installations

This DUO interlocked socket delivers safe, RCD-protected power for mid-range three-phase applications. With a 32A rating, mechanical interlock, and IP67-rated housing, it is ideal for outdoor or industrial settings requiring secure, high-integrity electrical connections.

• Built-in 30mA RCD: Provides rapid disconnection in the event of earth leakage to protect users and equipment.
• DUO Mechanical Interlock: Ensures the socket cannot be energised unless a plug is fully inserted and locked, improving safety.
• Switchable Operation: Integrated manual switch allows for local control of power, simplifying maintenance and operation.
• IP67 Ingress Protection: Fully sealed against dust and temporary water immersion, suitable for exposed and rugged environments.
• 5-Pin, 400V Layout: Standard 3P+N+E configuration with screw terminals, supporting balanced three-phase loads with neutral.

Technical Specification

• Mounting: Wall Mounted
• Current Rating: 32A
• Poles: 5P (3P+N+E)
• Voltage: 400V
• IP Rating: IP67
• RCD Rating: 30mA

✅ Install this IP67 DUO interlocked socket for safe, compliant, and weatherproof three-phase power distribution up to 32A!
