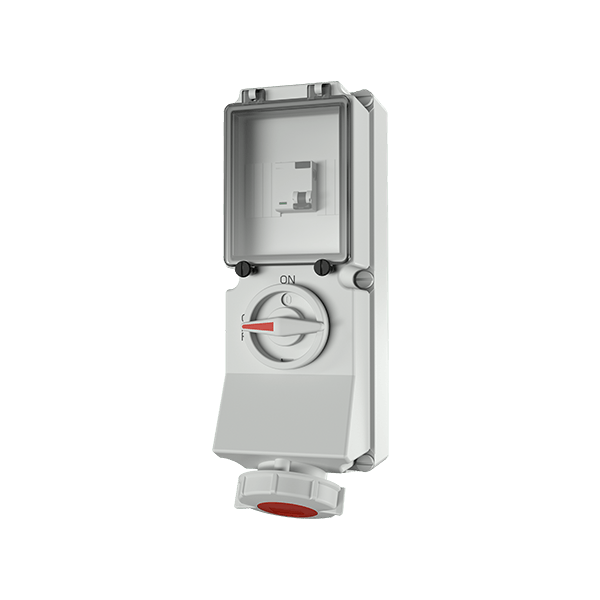

Mennekes 7248UK DUO Interlocked Socket with RCD IP67 32A 4P 400V 6h 30mA

DUO Interlocked Socket with RCD – IP67, 32A, 4P, 400V, 6h, 30mA for Safe, Mid-Range Three-Phase Installations Without Neutral

This DUO interlocked socket is ideal for secure, weatherproof three-phase connections where a neutral conductor is not required. With built-in RCD protection, a mechanical interlock, and an IP67-rated enclosure, it ensures safe, compliant operation in medium-duty industrial applications.

• 30mA RCD Protection: Provides automatic disconnection on earth leakage, enhancing electrical safety for equipment and users.
• DUO Mechanical Interlock: Prevents energisation unless the plug is fully inserted and locked, safeguarding against accidental contact.
• Manual Switching: Includes a built-in switch for convenient local power control and isolation.
• IP67 Rating: Fully sealed against dust and temporary water immersion, ideal for harsh and outdoor environments.
• 4-Pin 400V Configuration: 3P+E setup with screw terminals, suitable for balanced three-phase systems without a neutral conductor.

Technical Specification

• Mounting: Wall Mounted
• Current Rating: 32A
• Poles: 4P (3P+E)
• Voltage: 400V
• IP Rating: IP67
• RCD Rating: 30mA

✅ Use this DUO interlocked 4P socket for safe, RCD-protected three-phase connections in outdoor and industrial environments!
