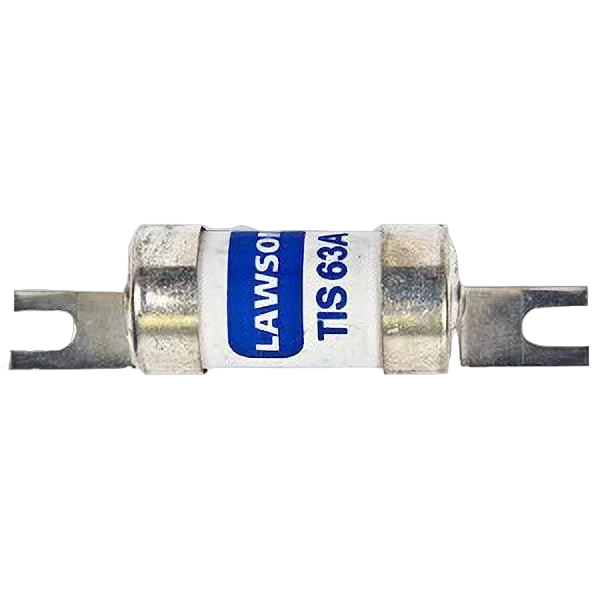

Lawson TIS63 Type TIS BS88, IEC60269-2 Industrial HRC Fuse Link With Offset Bolted Tags 63 Amps 415V ac

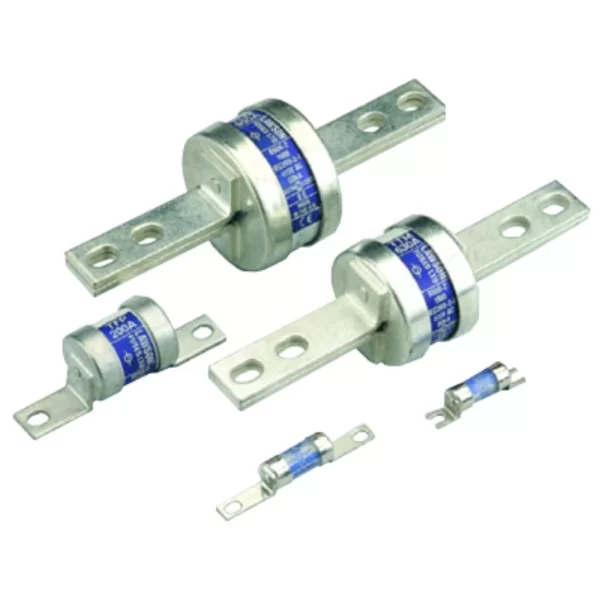

Lawson Type “ N†& “T†fuse-links are for use in industrial installations and can be fitted into BS88 bolted fuse-holders and distribution fusegear. The range includes all BS88: Part 2 reference fuse-links up to 800 Amps and has gG classification, ensuring compliance with the current edition of the UK Wiring Regulations. Many non-reference tag variants are available to cater for installation in non-standard or specialised equipment .
The range has a rated voltage of 415V a.c. and has been certified at a test recovery voltage of at least 110%. These fuselinks are therefore suitable for use on systems with voltages up to 457V a.c. The range also has a rating of 250V d. c.
A complementary range of solid/neutral links is available to suit our fuse-link range.

Specification:
Current Rating (A): 35,40,50,63,80,100,125
BS88 Reference: A3
Voltage Rating (V): 415a.c. 240d.c.
Breaking Cpacity: (kA): 80kA-a.c., 40kA-d.c.
BS Standard: BS88: Part 2
IEC Standard: 60269-2

Dimesions:

A: 87.0mm
B: 73.5mm
C: 54.5mm
D: 21.0mm
E: 22.5mm
F: 1.2mm
G: 12.7mm
H: 18.0mm
J: 5.5mm
