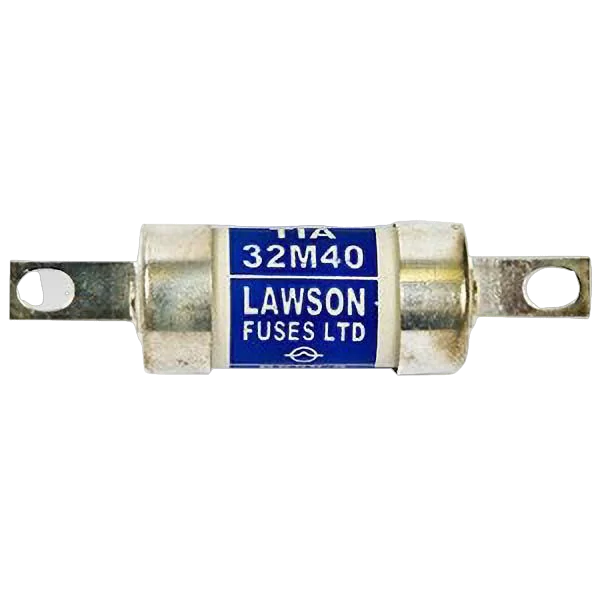

Lawson TIA32M40 Type TIA BS88, IEC60269-2 Industrial HRC Motor Rated Fuse Link With Offset Bolted Tags 32M40 Amps 415V ac

Lawson TIA32M40 Type TIA BS88 Motor Rated HRC Industrial Fuse Link – 32M40A, Offset Bolted Tags, Motor Circuit Protection

The Lawson TIA32M40 Type TIA HRC Fuse Link is designed specifically for motor circuit protection in industrial environments. With offset bolted tags and full compliance to BS88 and IEC60269-2, this motor-rated fuse ensures safe, efficient disconnection under high inrush conditions.

• Motor Rated 32M40A: Optimised for motor starting currents while providing reliable circuit protection.
• Offset Bolted Tags: Suitable for compact and non-standard distribution systems and fuse holders.
• High Breaking Capacity: Tested to 80kA AC and 40kA DC for safe operation under severe fault conditions.
• Dual Voltage Compatibility: Operates at 415V AC (tested to 457V) and 250V DC for wide-ranging applications.
• gG Classification: Conforms to BS88: Part 2 and UK Wiring Regulations for general and motor protection.

Technical Specification

• Current Rating: 32M40A
• Voltage Rating: 415V AC / 250V DC
• Breaking Capacity: 80kA AC / 40kA DC
• Standards: BS88: Part 2, IEC60269-2
• BS Reference Code: A2

✅ Choose the Lawson TIA32M40 Fuse Link for dependable, motor-rated protection in compact industrial systems!

(Note- We have introduced an internal stock identification code, using 'EExxx' references. Rest assured you will be supplied the genuine manufacturer items)
